TLARLUS8F100ABN

Brushed nickel 8' LED architectural linear luminaire

Selectable Power : 60W / 80W / 100W
Selectable CCT : 3500K / 4000K / 5000K
Light output : 60W: 6900 lm / 80W: 9200 lm / 100W: 11500 lm
cETLus FCC Dimmable 5 years warranty

Description

• Modular luminaire available in 2, 4 and 8 feet.
• Wide supply voltage supply range 120-347V.
• Selectable power and CCT.
• Direct and indirect lighting.
Selectable up/down configuration : 0% up 100% down / 30% up 70% down / 50% up 50% down.
• Its versatile design makes installation easy which reduces installation time and costs.
• Savings on energy consumption compared to conventional lighting.
• Warranty: 5 years.

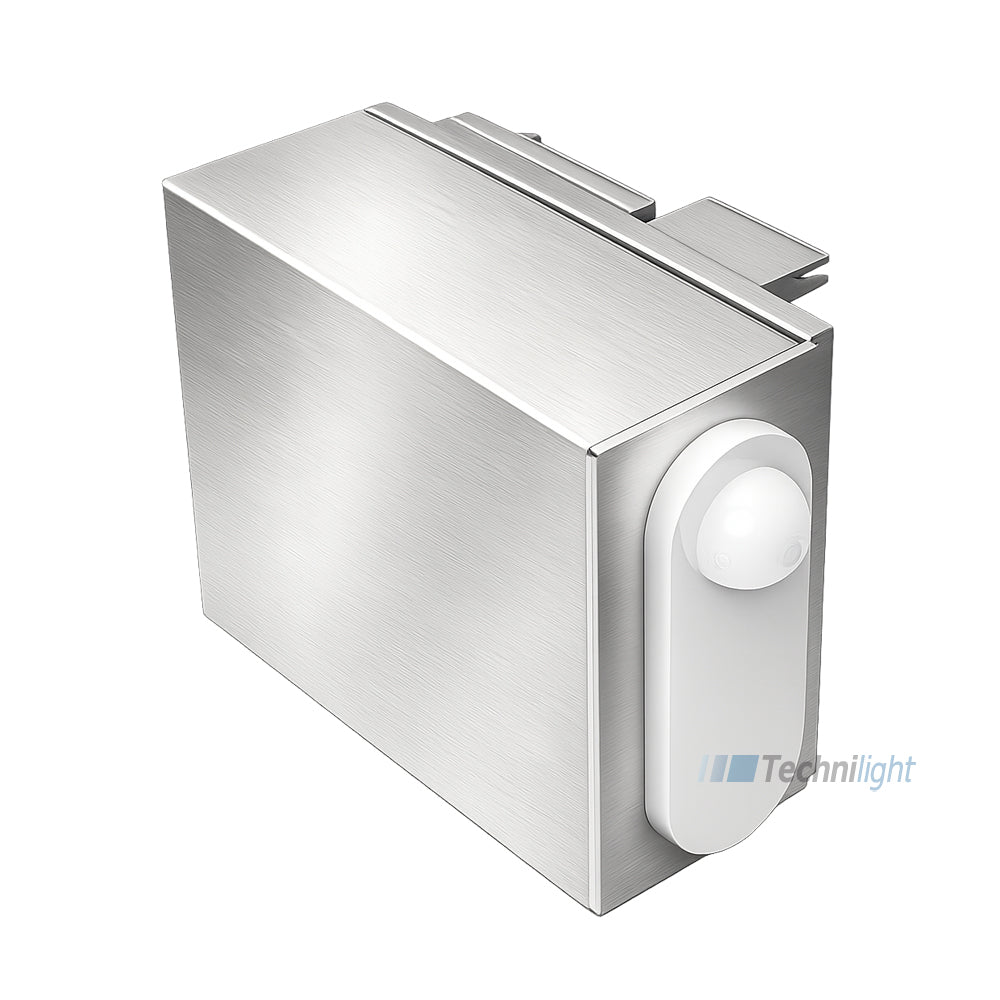

• Compatible with most sensors.

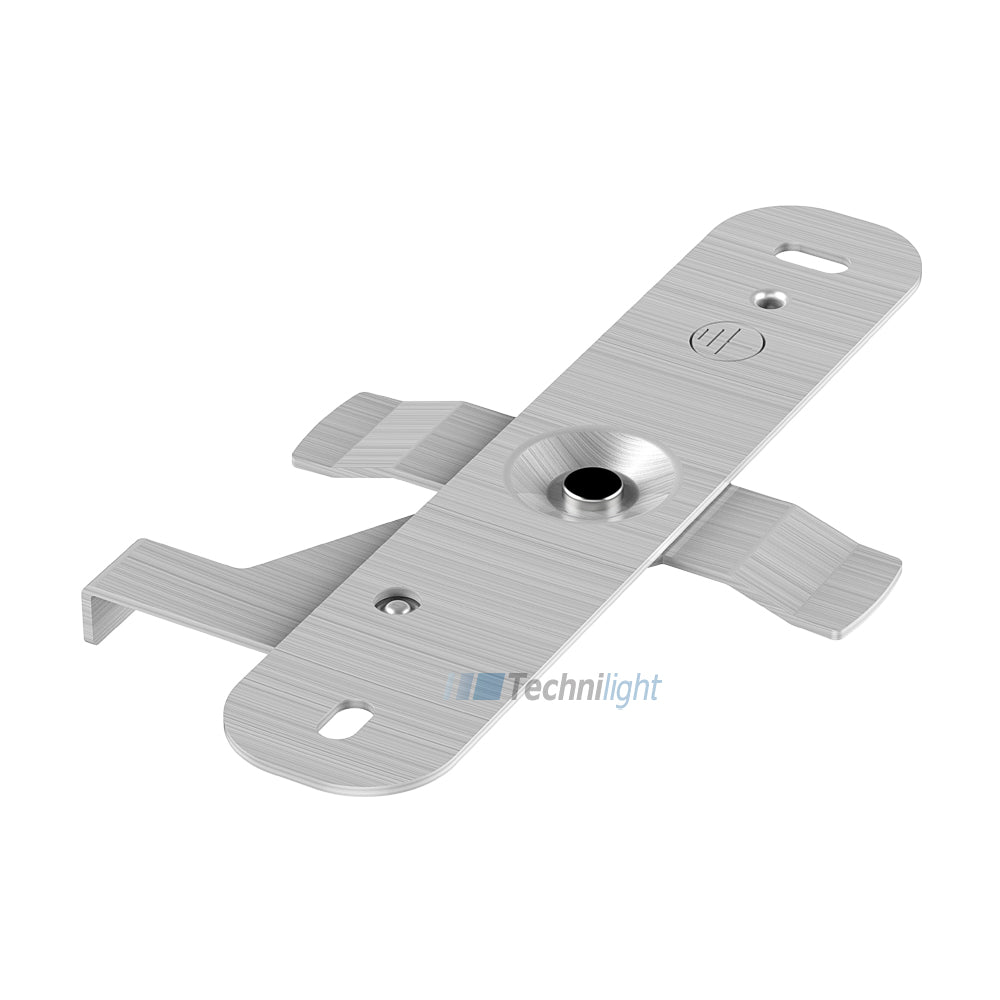

• 3 installations options: suspended, surface mount or wall mount, accessories not included.
• Maximum of 420W at 120V, 840W at 240V and 1200W at 347V per circuit.

Applications

Suitable for offices, schools, shops, showrooms, etc.

Model

TLARLUS8F100ABN

DLC ID

N/A

Power (W)

60W / 80W / 100W

Input Voltage (V)

AC 120-347V, 50/60Hz

Efficacy

115 lm/W

Power Factor (PF)

0.9
