TLCPUS14W60AD

Name: TLCPUS14W60AD
Brand: Technilight

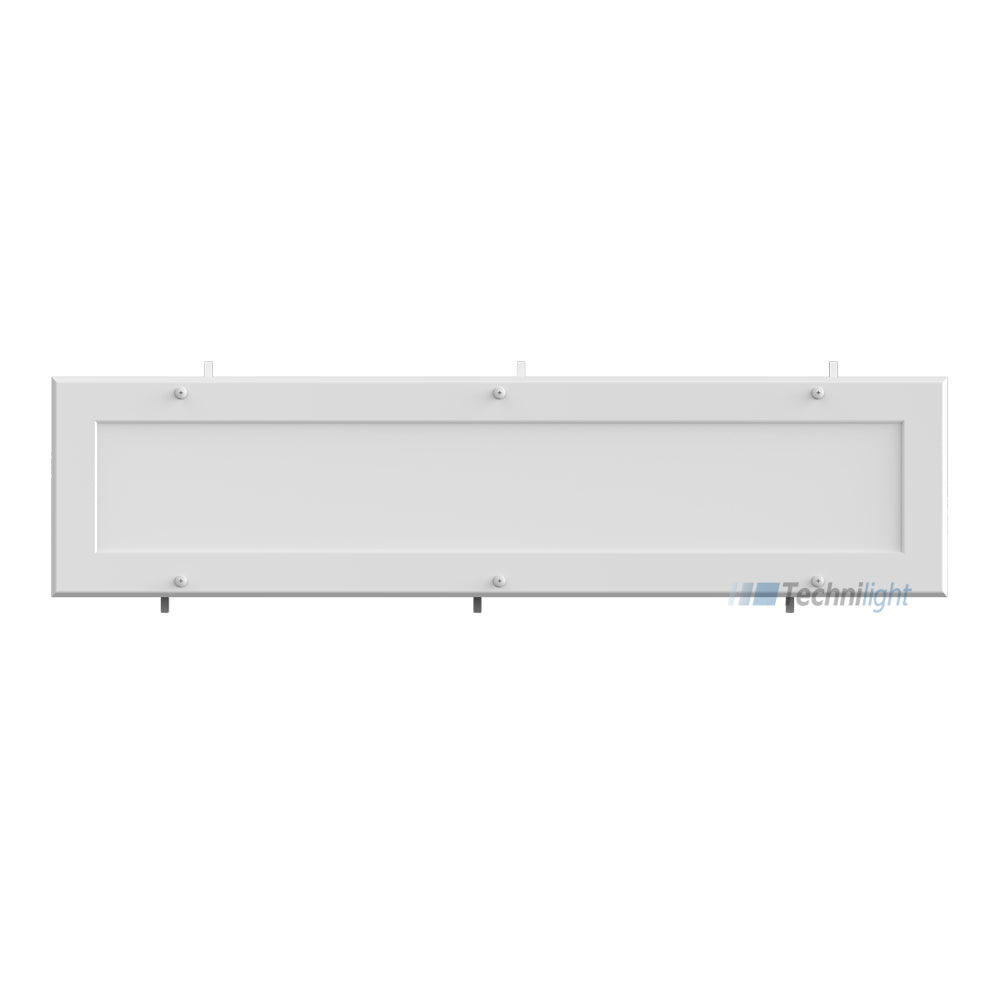

1' x 4' cleanroom panel

Selectable power : 40W / 48W / 60W
Selectable CCT : 3500K / 4000K / 5000K
Light output : 40W: 5000 lm / 48W: 6000 lm / 60W: 7500 lm

Product information

Technical sheet IES Installation guide

Description

• Selectable power and CCT.
• Fully welded construction.

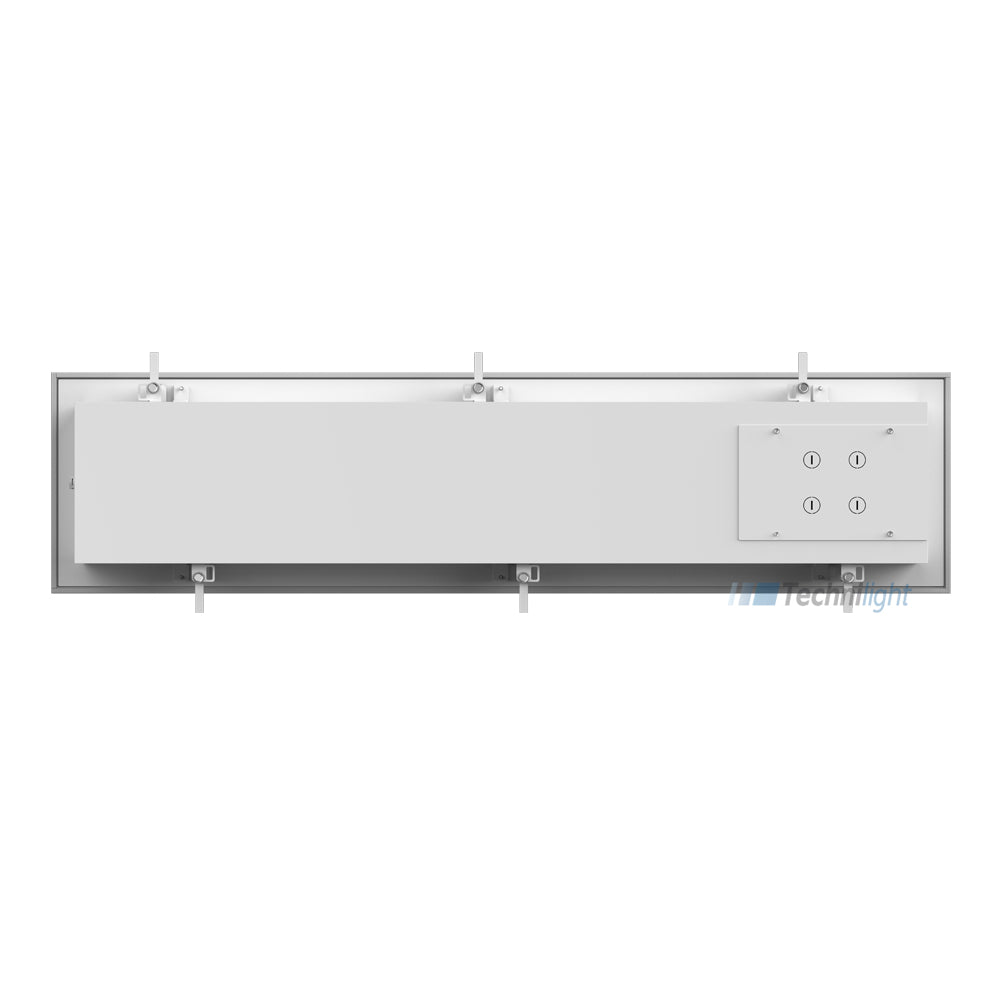

• Concealed front mounting brackets.
• Antibacterial coating.
• Fraunhofer IPA certified for cleanrooms.
• Compliant with cleanrooms of ISO cleanliness classes 3 to 9.
• UGR <22.

Applications

Dust-free factories, laboratories, hospitals, pharmaceutical plants, etc.

Model

TLCPUS14W60AD

Power (W)

40W / 48W / 60W

Input Voltage (V)

100-347 V | 50/60 Hz

Efficacy

125 lm/W

Power Factor (PF)

>0.9

Surge protection

CM(L/N):2KV, DM (L/N-PE) :2KV

Accessories (not included)
