TLEAL200HD120P

Name: TLEAL200HD120P
Brand: Technilight

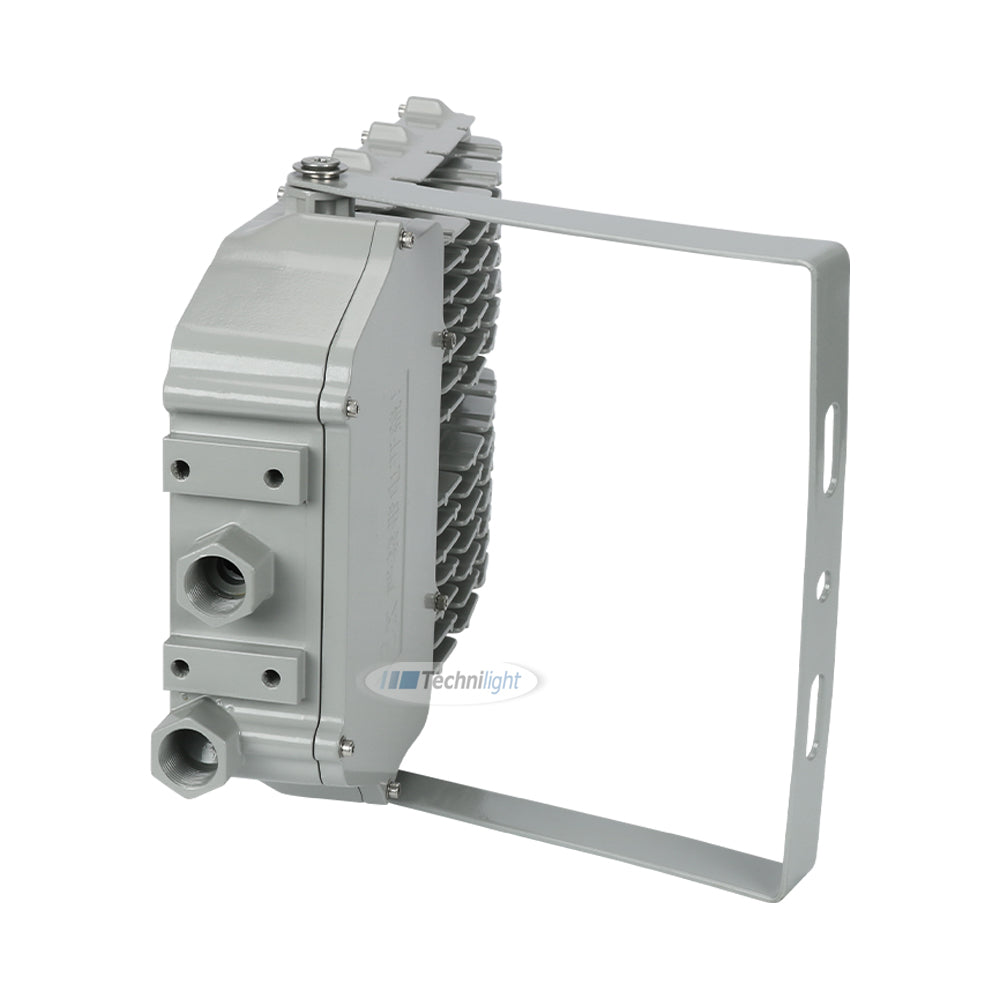

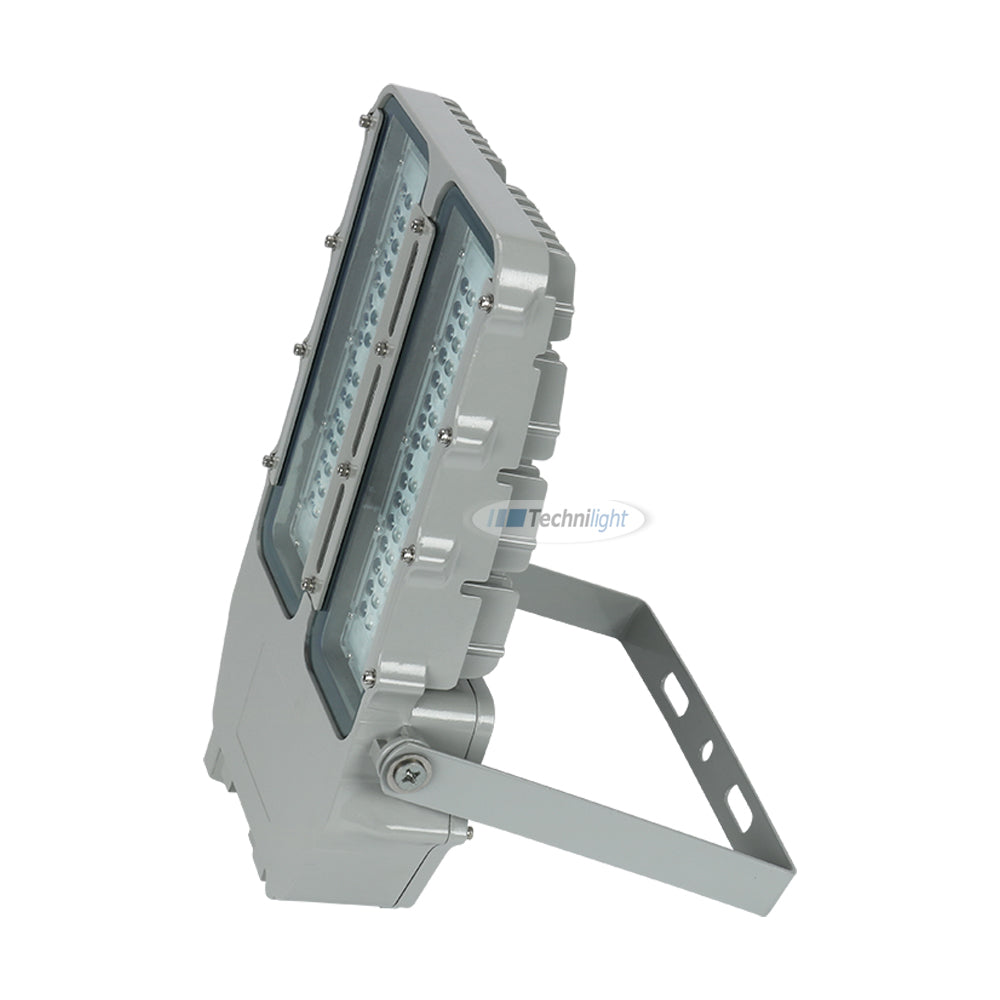

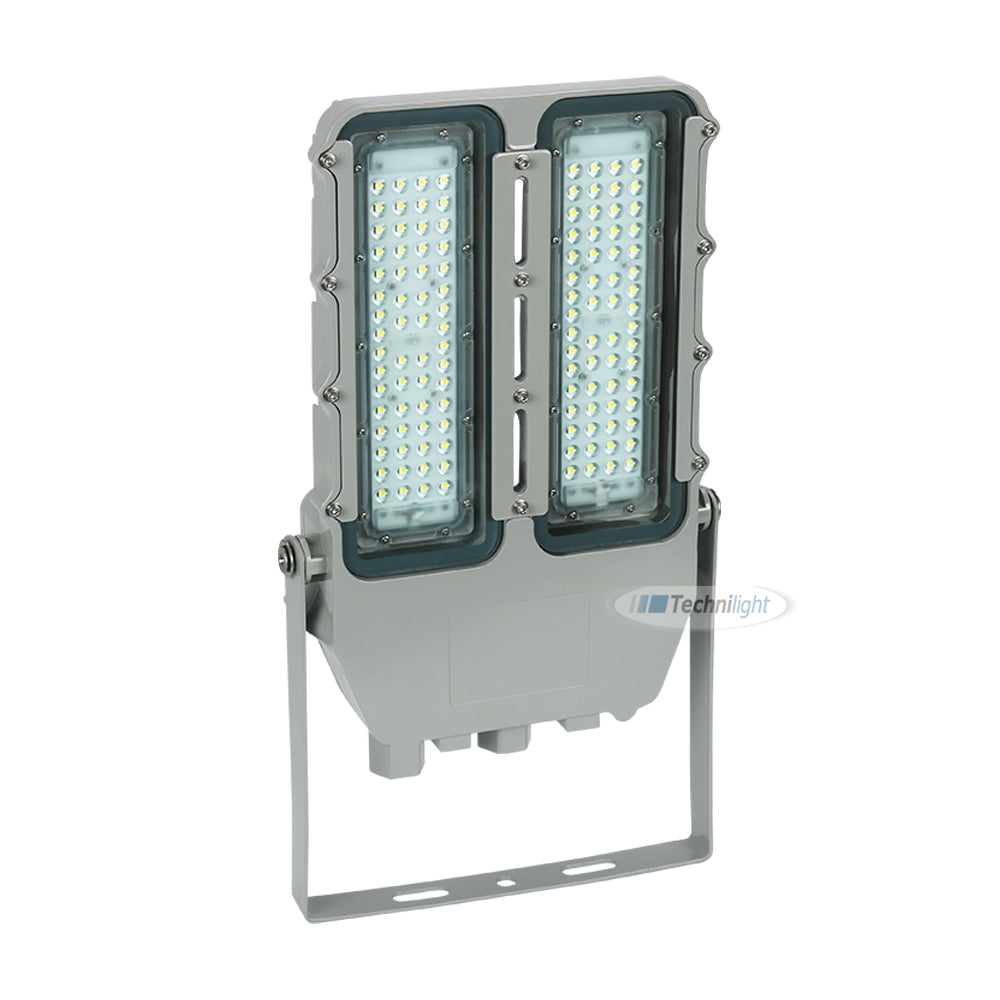

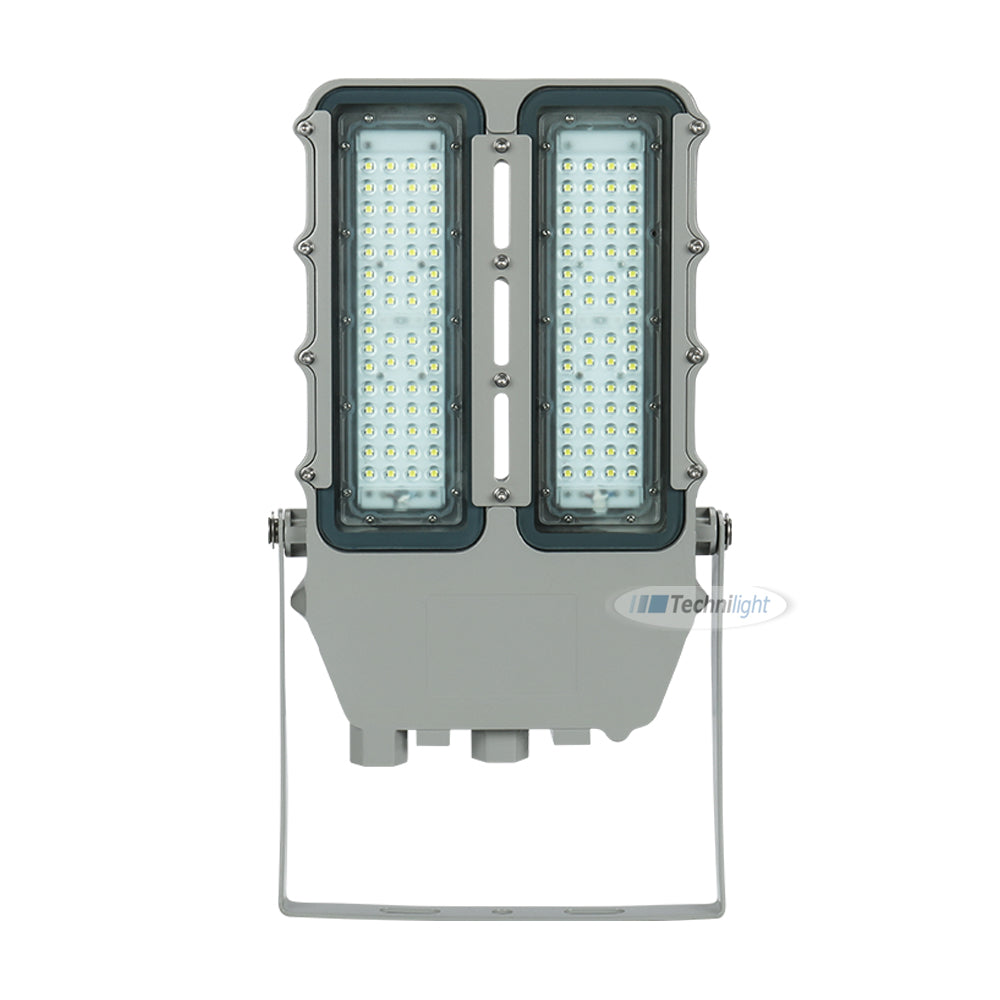

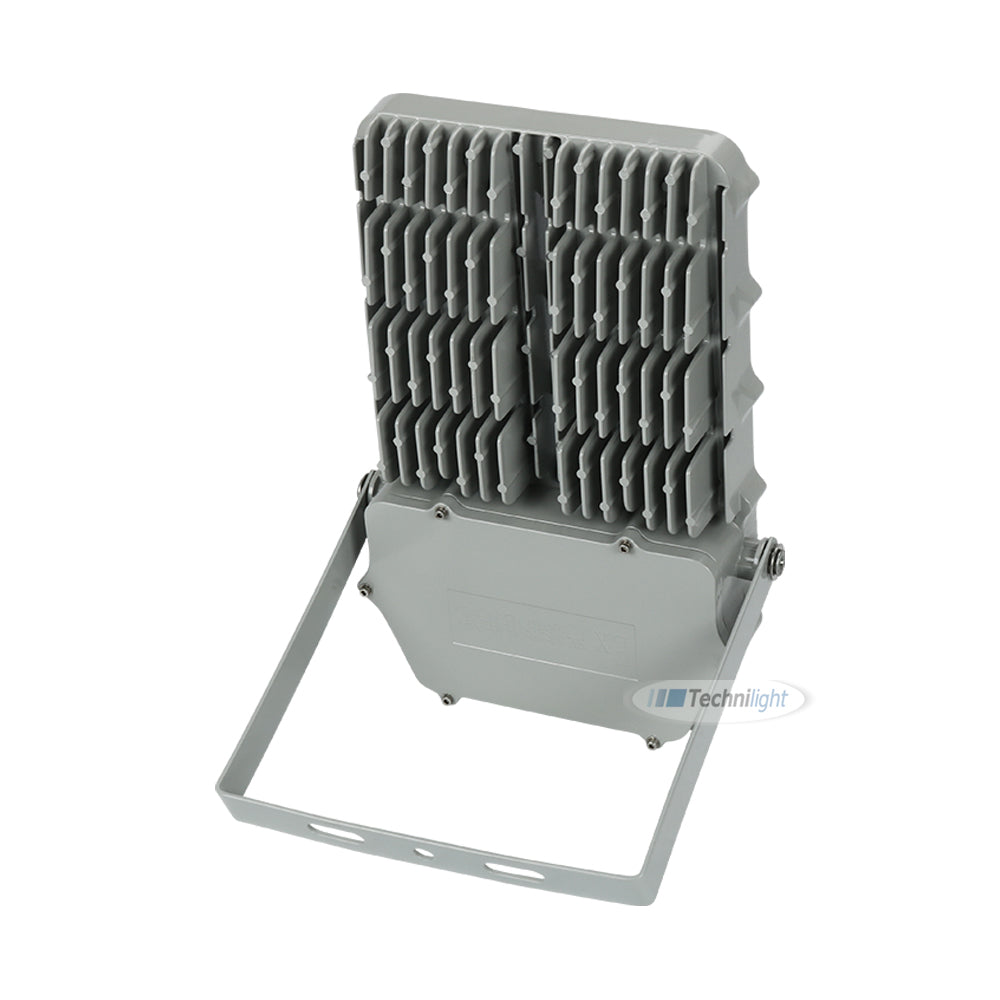

Explosion proof LED luminaire

Availability: On order
Power: 200 W
CCT : 5 000 K
Light output : 26 000 lm

Product information

Technical sheet IES

Description

• UL-844 Dangerous places
• CAN / CSA-C22.2 NO. 137
• CLASS 1 - DIV 2 - GROUP A, B, C, D
• CLASS 2 - DIV 1 - GROUP E, F, G
• CLASS 2 - DIV 2 - GROUP F, G
• CLASS 3
• Savings on energy consumption compared to HPS / MH lighting.
• Warranty: 5 years.
• Other CCT available on request.
• Color: Gray.

Applications

Areas with risk of explosion (gas emissions), areas with vapor or dust, petrochemical complexes, mines, etc. Designed for wet locations.
Indoor and outdoor.

Model

TLEAL200HD120P

DLC ID

No

Power (W)

200 W

Input Voltage (V)

AC200-480V, 50/60Hz

Efficacy

130 lm/W

Power Factor (PF)

0.9

Accessories (not included)
