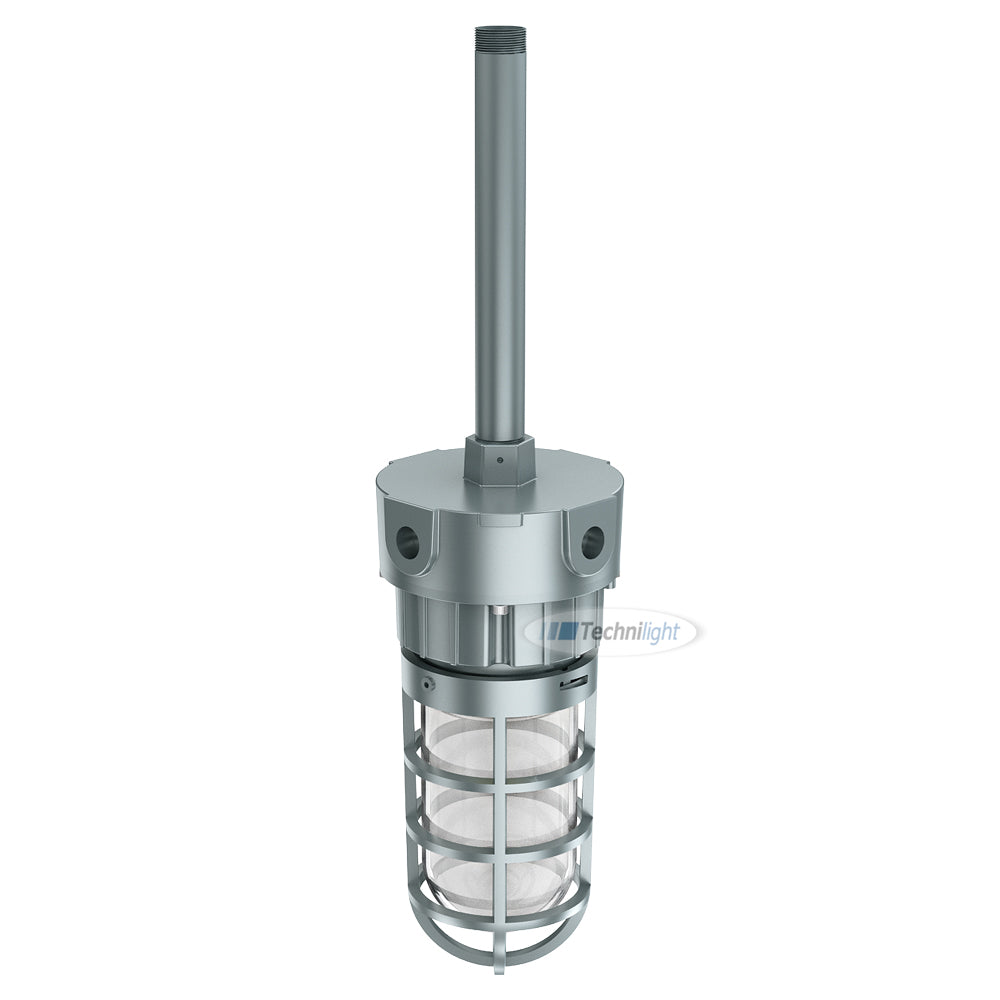

TLEGC20D120P
Explosion proof LED luminaire
Availability: On order
Power:
20 W
CCT :
5 000 K
Light output :
2 000 lm
Product information
Description
Model
TLEGC20D120P
DLC ID
No
Power (W)
20 W
Input Voltage (V)
AC100-277V, 50/60Hz
Efficacy
100 lm/W
Power Factor (PF)
≥0.9
Surge protection
N/A
Total harmonic distortion
N/A
Dimmable
0-10 V
CRI
≥70
CCT
5 000 K
Beam angle
120°
Light Output
IP Rating
IP66
Material
Aluminum
Lens
Clear (tempered glass)
Net weight
2.27 kg
Dimensions
Operating Humidity
10% ~ 95%
Operating Temperature
-40°C ~ 25°C, T6 / -40°C ~ 40°C, T5 / -40°C ~ 60°C, T4
