TLFEP100HC120P

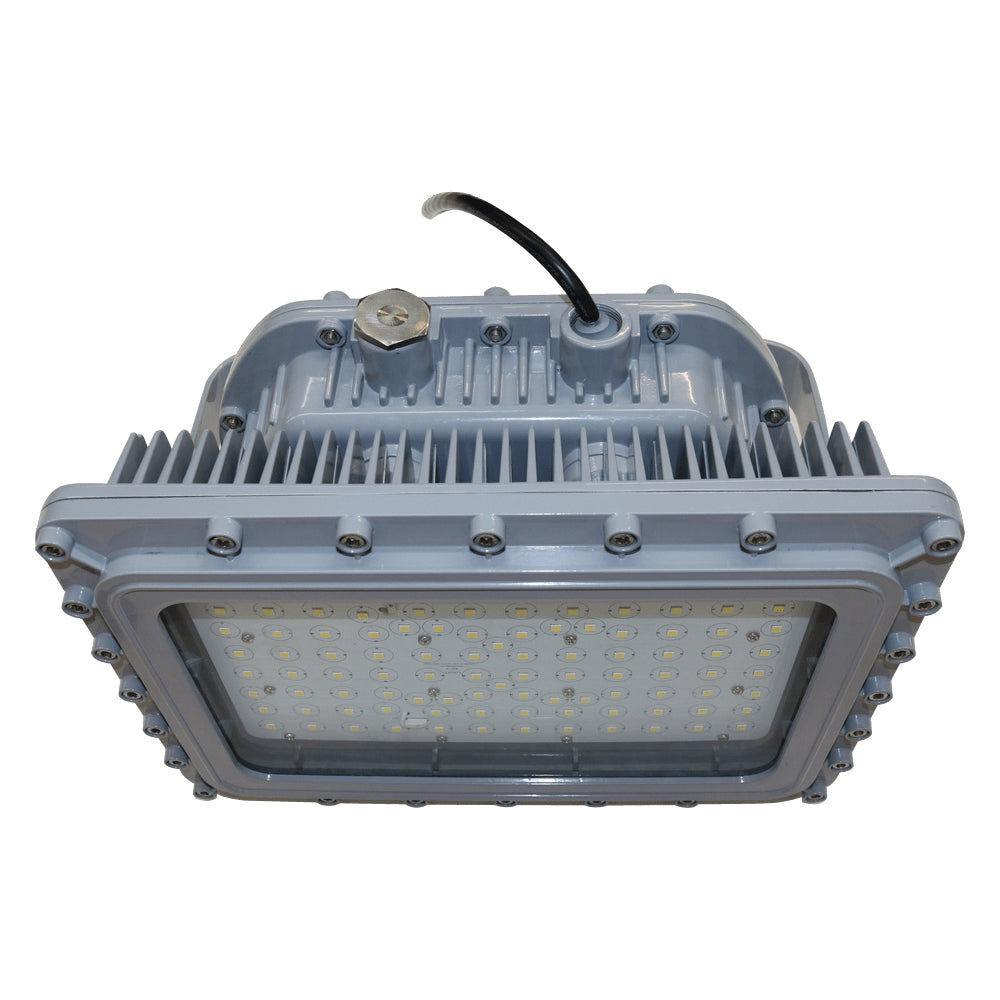

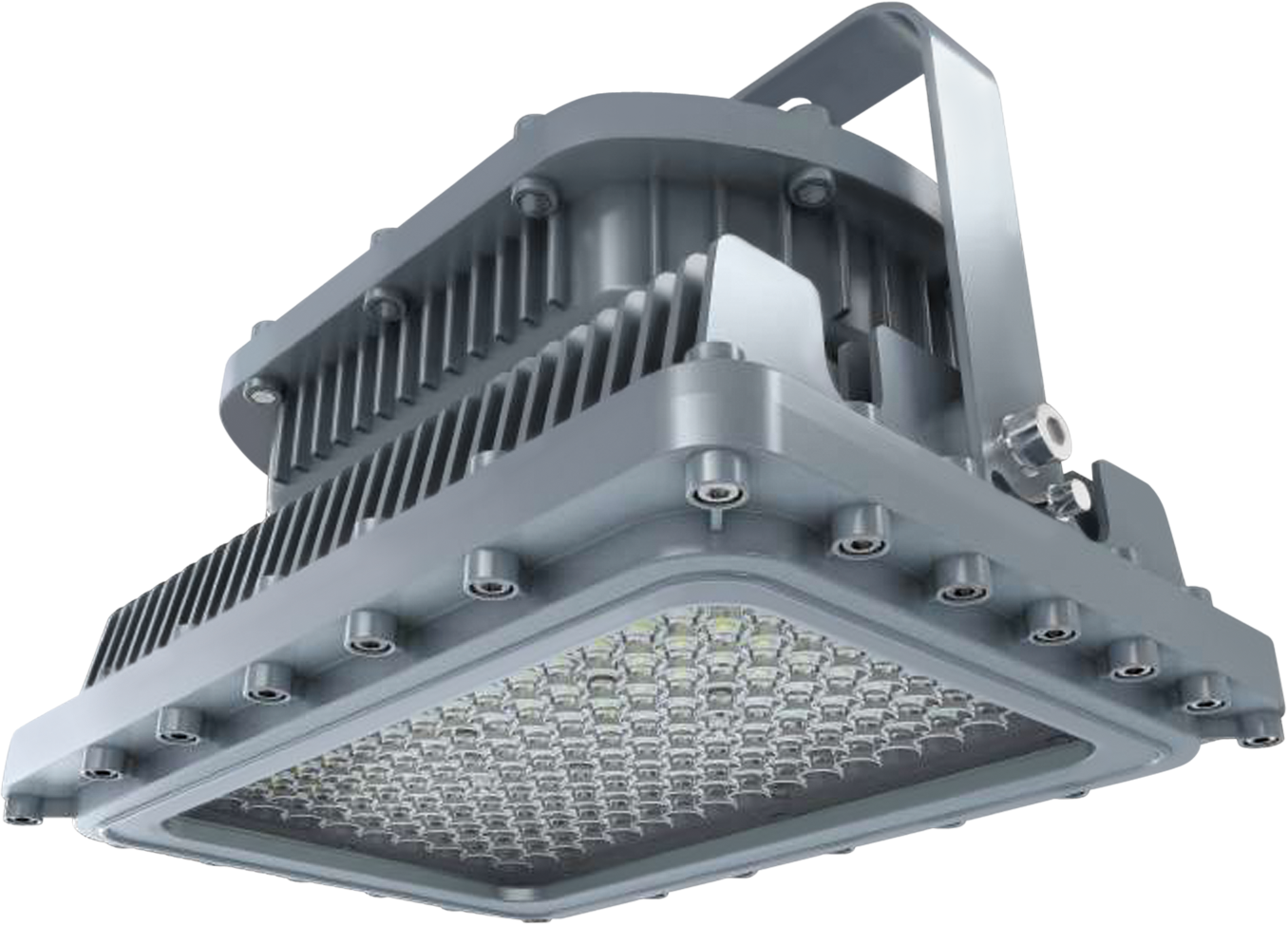

Explosion proof LED luminaire

Power: 100 W
CCT : 5 000 K
Light output : 14 000 lm
cETLus Explosion proof Dimmable 5 years warranty

Description

• UL 844:
• CLASS 1 - DIVISION 1 - GROUP C, D
• CLASS 1 - DIVISION 2 - GROUP A, B, C, D
• CLASS 2 - DIVISION 1 - GROUP E, F, G
• CLASS 2 - DIVISION 2 - GROUP F, G
• CLASS 3
• Marine marking: UL 1598A.
• Saves up to 70% on electricity consumption compared to HPS/MH lighting fixture.
• Warranty: 5 years.
• Other CCT available on request.
• Beam angle available on request: 40°, 60° et 90°.
• Wall mount or ceiling mount bracket.

Applications

Areas with risk of explosion (gas emissions), areas with vapor or dust, petrochemical complexes, mines, etc. Designed for wet locations.
Indoor and outdoor.

Model

TLFEP100HC120P

DLC ID

No

Power (W)

100 W

Input Voltage (V)

AC200-480V, 50/60Hz

Efficacy

140 lm/W

Power Factor (PF)

0.9
