TLHBEU1C80D120PA

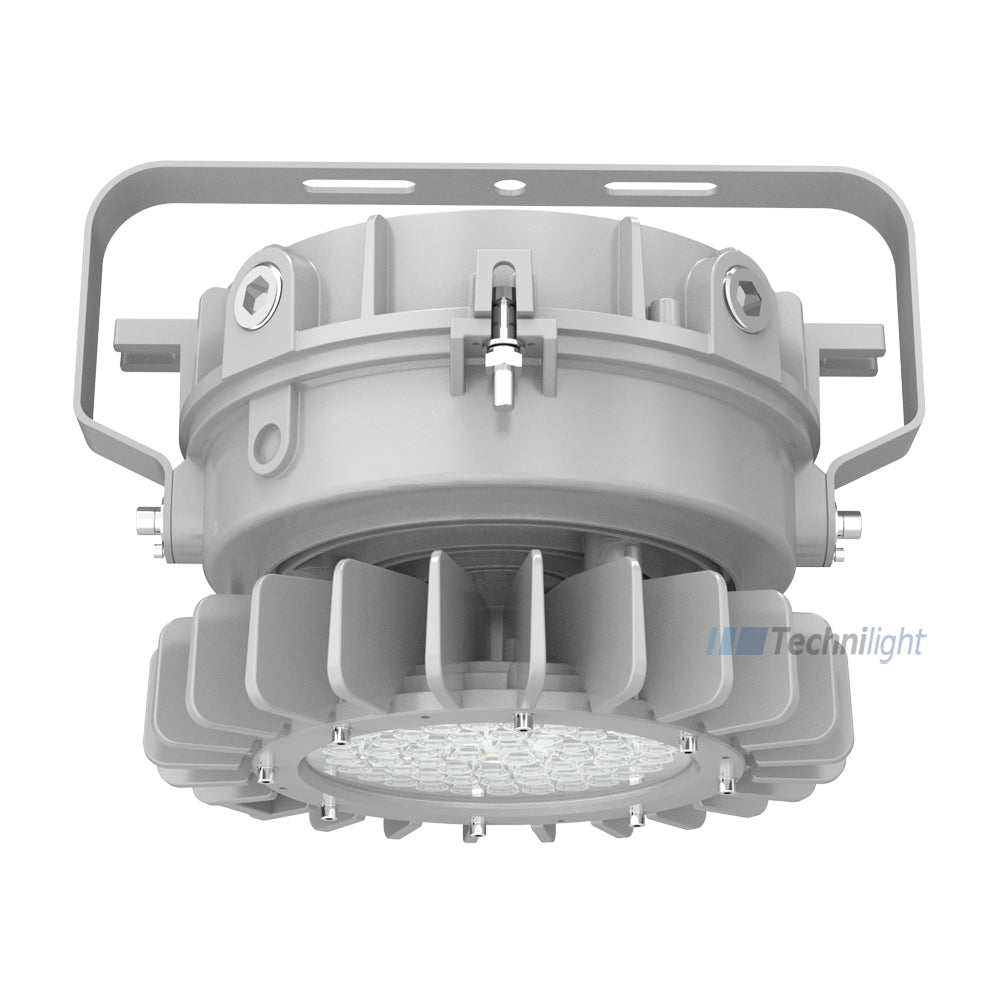

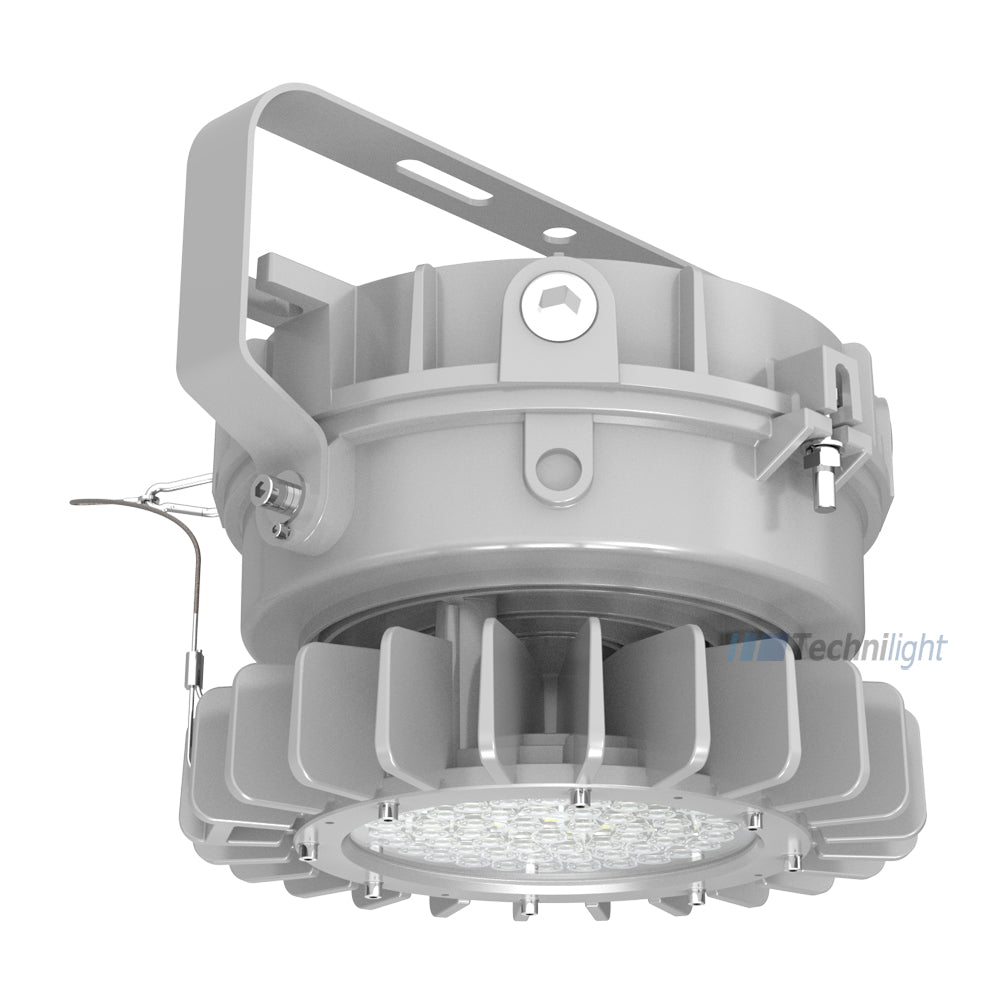

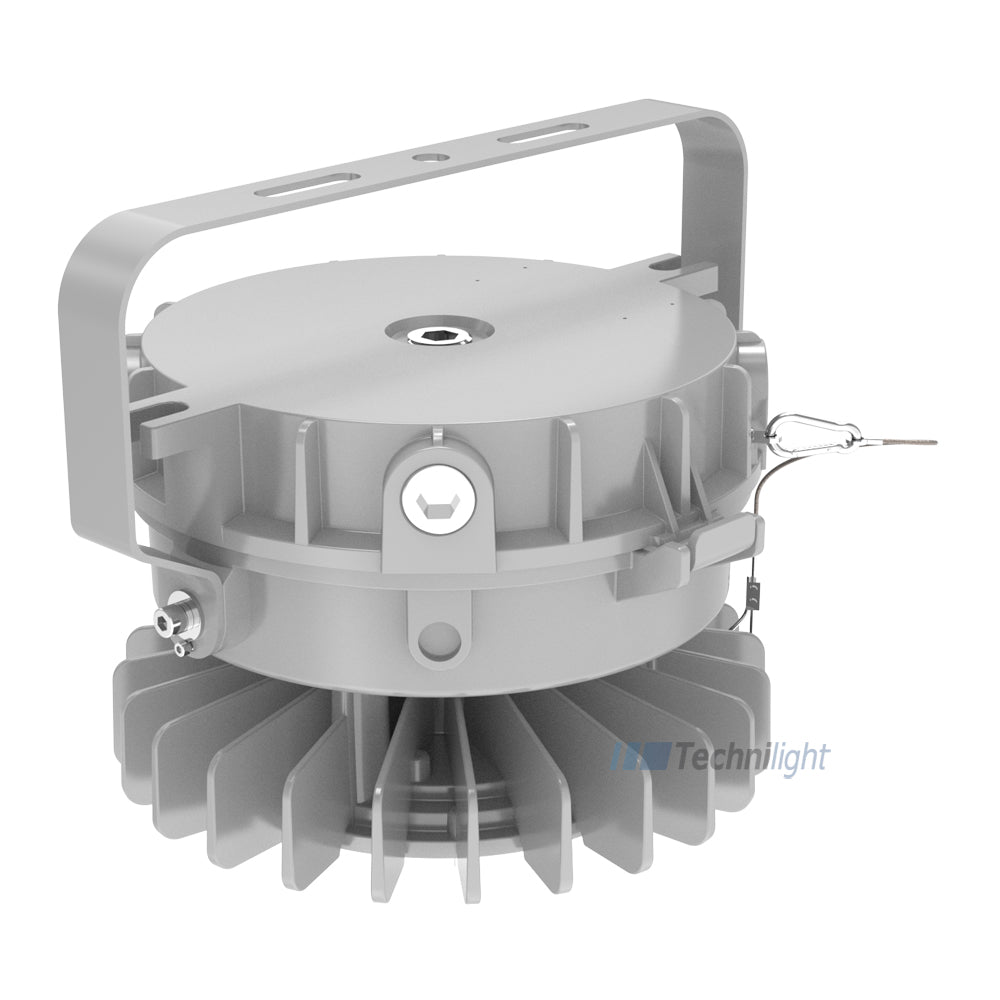

High bay explosion-proof luminaire 120-347V
Power: 80 W (120-347V)
CCT : 5 000 K
Light output : 10 400 lm
CCT : 5 000 K
Light output : 10 400 lm




Product information
Description
Model
TLHBEU1C80D120PA
DLC ID
-
Power (W)
80 W
Input Voltage (V)
AC120-347V, 50/60 Hz
Efficacy
130 lm/W
Power Factor (PF)
>0.9
Surge protection
10 kv
Total harmonic distortion
<15%
Dimmable
0-10 V
CRI
>80
CCT
5000 K
Beam angle
120°
Light Output
IP Rating
IP66 / IK08
Material
Aluminum
Lens
Clear tempered glass
Net weight
5.88 kg
Dimensions
Operating Humidity
10% ~ 90%
Operating Temperature
-40°C ~ 50°C
