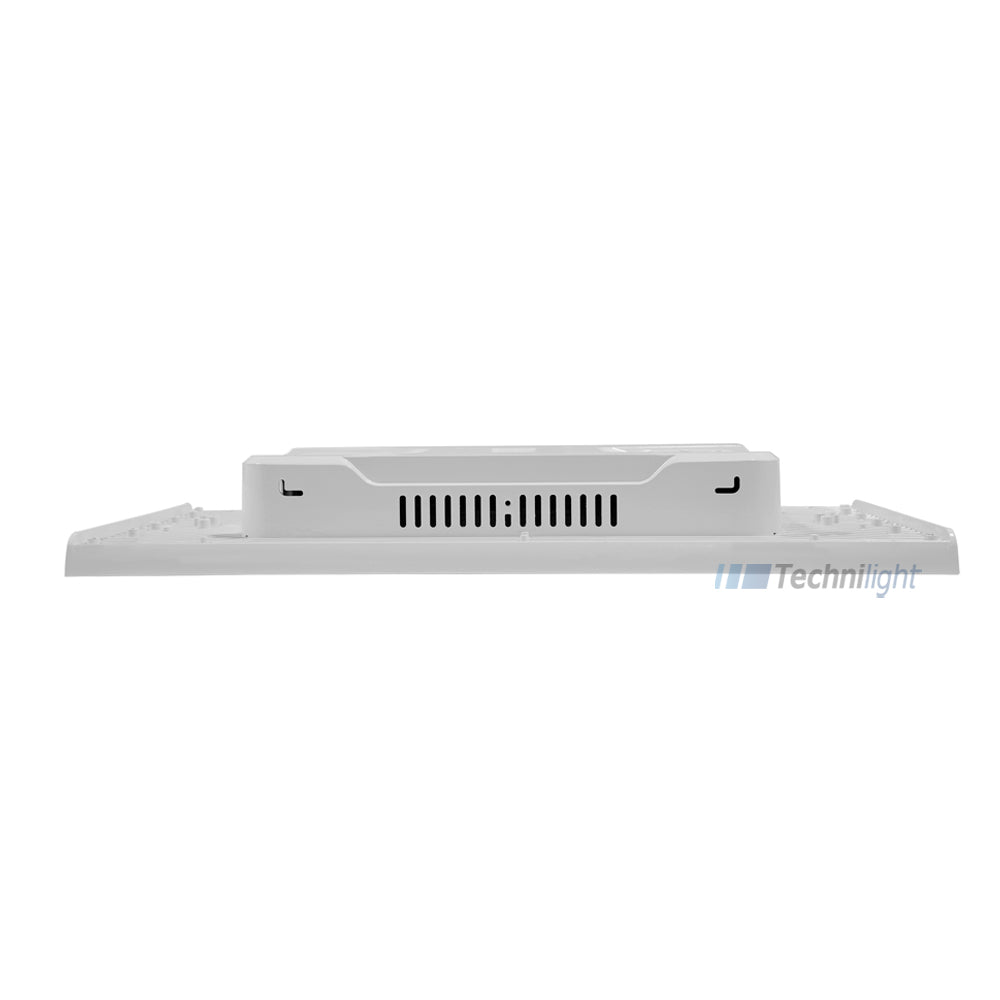

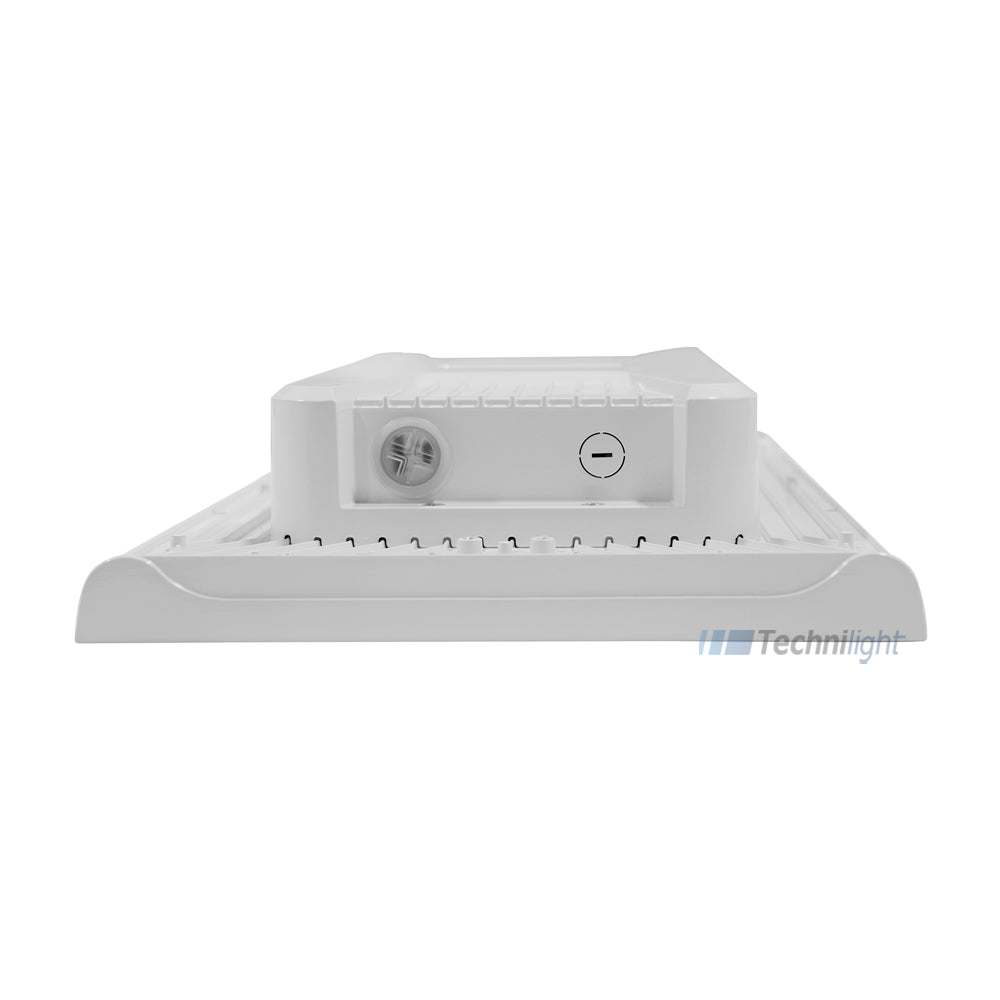

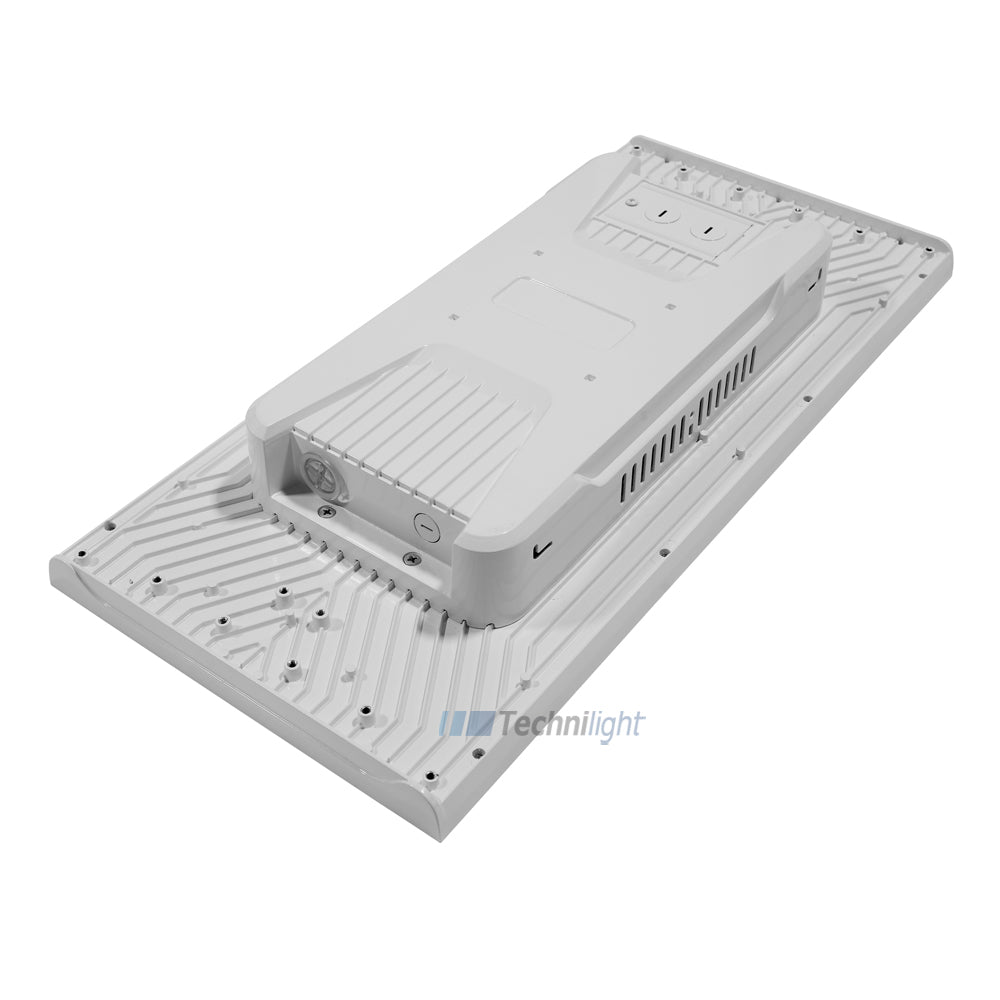

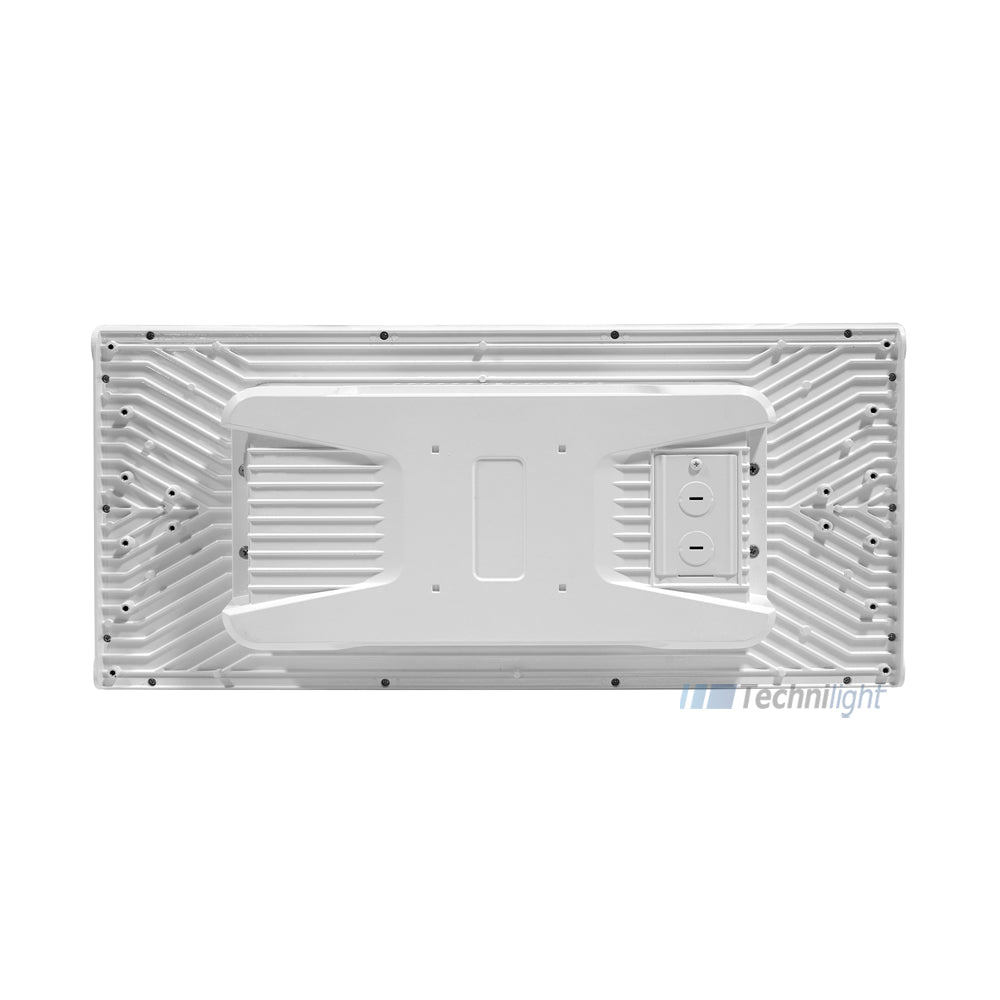

TLHBGUS140ABK
Low glare luminaire
Availability: Regular stock
Selectable power :
80W / 120W / 140W
Selectable CCT :
3500K / 4000K / 5000K
Light output :
80W: 11 200 lm / 120W: 16 800 lm / 140W: 19 600 lm
Input voltage :
AC120-347V
Product information
Description
Model
TLHBGUS140ABK
Power (W)
80W / 120W / 140W
Input Voltage (V)
AC120-347V | 50/60 Hz
Efficacy
140 lm/W
Power Factor (PF)
≥0.9
Surge protection
Driver L-N 6kV, L/N-GND 6kV
Total harmonic distortion
<15%
Dimmable
0-10 V
CRI
≥95
CCT
3500K / 4000K / 5000K
Beam angle
60°
Light Output
IP Rating
IP20 / IK10
Material
Die cast aluminum
Lens
Clear polycarbonate
Net weight
5 kg
Dimensions
Operating Humidity
0% ~ 95% RH (no condensation)
Operating Temperature
-20°C ~ 50°C
