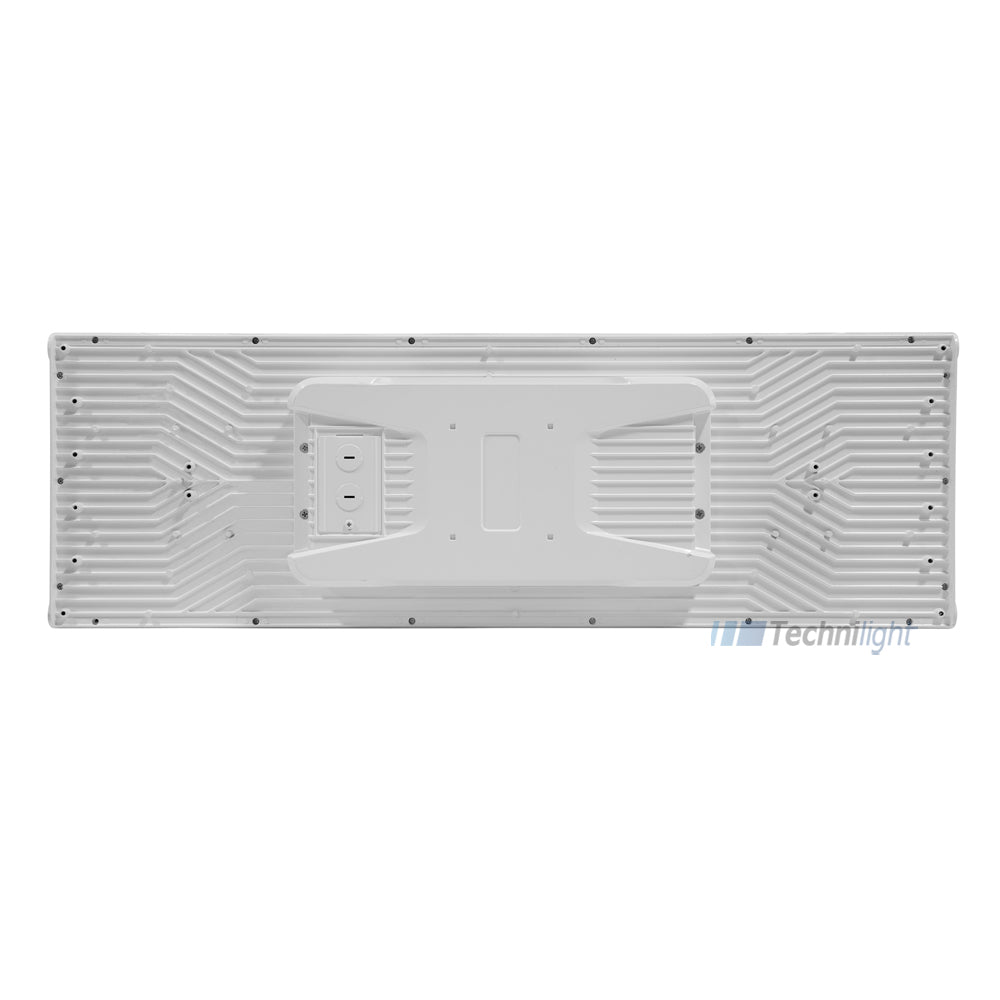

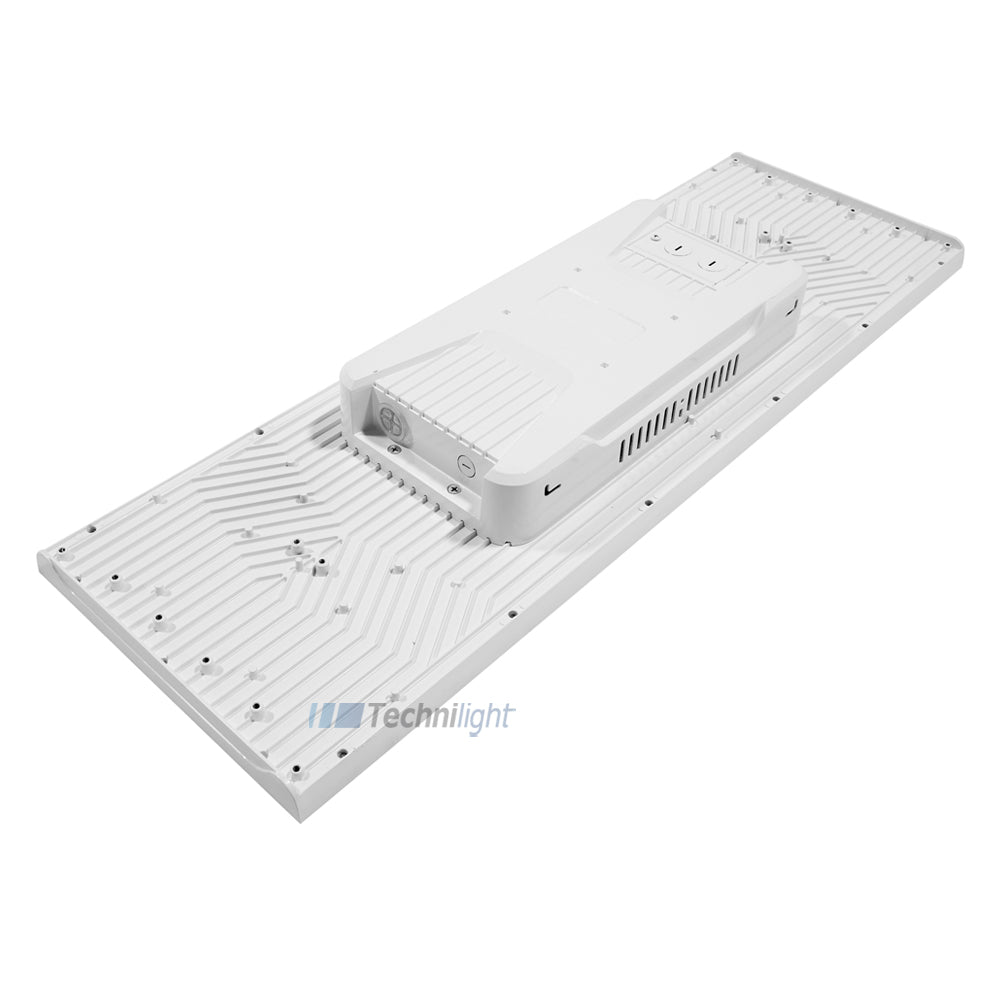

TLHBGUS220ABK
Low glare luminaire
Selectable power : 150W / 180W / 220W
Selectable CCT : 3500K / 4000K / 5000K
Light output : 150W: 21 750 lm / 180W: 26 100 lm / 220W: 31 900 lm
Input voltage : AC120-347V
Selectable CCT : 3500K / 4000K / 5000K
Light output : 150W: 21 750 lm / 180W: 26 100 lm / 220W: 31 900 lm
Input voltage : AC120-347V
Product information
Description
Model
TLHBGUS220ABK
Power (W)
150W / 180W / 220W
Input Voltage (V)
AC120-347V | 50/60 Hz
Efficacy
145 lm/W
Power Factor (PF)
≥0.9
Surge protection
Driver L-N 6kV, L/N-GND 6kV
Total harmonic distortion
<15%
Dimmable
0-10 V
CRI
≥95
CCT
3500K / 4000K / 5000K
Beam angle
60°
Light Output
IP Rating
IP20
Material
Die cast aluminum
Lens
Clear polycarbonate
Net weight
6 kg
Dimensions
Operating Humidity
0% ~ 95% RH (no condensation)
Operating Temperature
-20°C ~ 50°C
