TLLEP4C120H120P

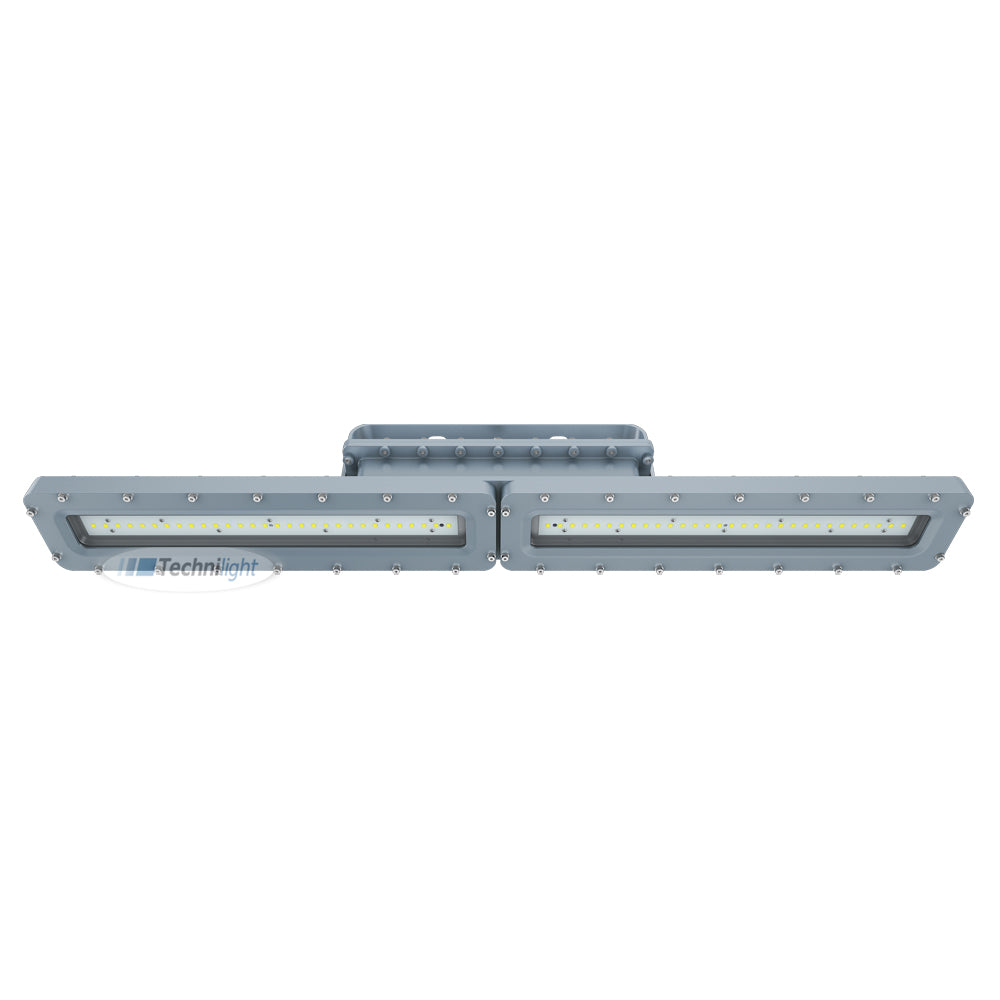

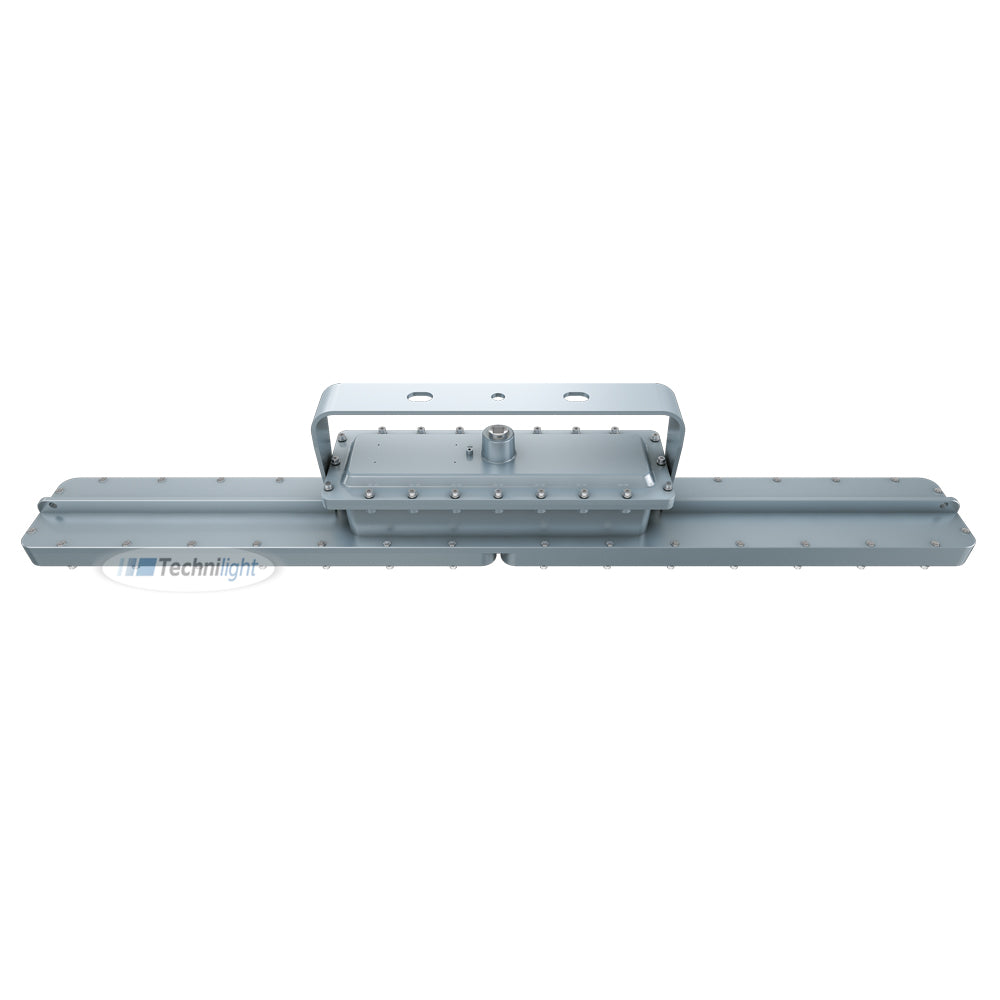

4' Explosion proof LED luminaire
Availability: On order
Power :
120 W
CCT :
5 000 K
Light output :
16 800 lm
Product information
Description
Model
TLLEP4C120H120P
Power (W)
120 W
Input Voltage (V)
AC200-480V, 50/60Hz
Efficacy
140 lm/W
Power Factor (PF)
0.9
Surge protection
10 kv
Total harmonic distortion
<15%
Dimmable
0-10 V
CRI
≥70
CCT
5 000 K
Beam angle
120°
Light Output
IP Rating
IP66
Material
Aluminum
Lens
Clear (tempered glass)
Net weight
18.5 kg
Dimensions
Operating Humidity
10% ~ 95%
Operating Temperature
-40°C ~ 40°C, T4
