TLPBLUS22W35AD

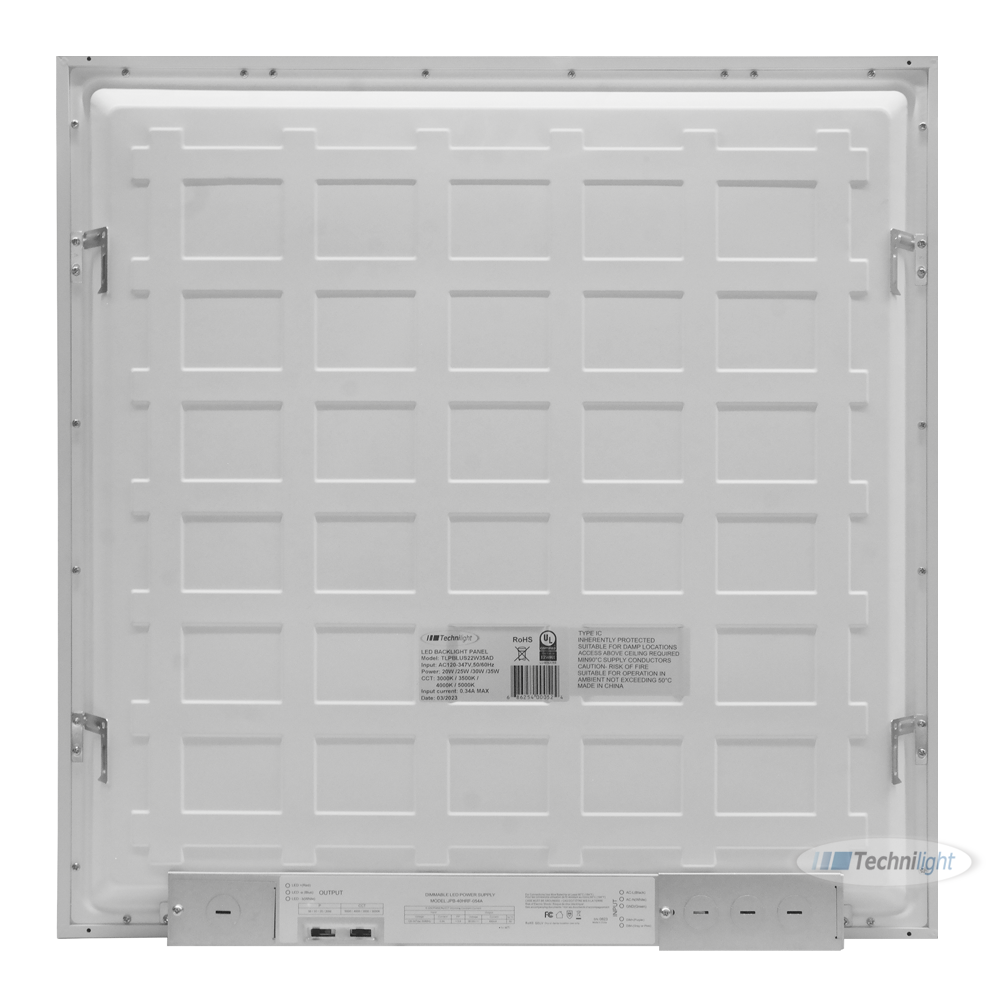

2' x 2' LED panel

Selectable power : 20W / 25W / 30W / 35W
Selectable CCT : 3000K / 3500K / 4000K / 5000K
Light output : 20W : 2600 lm / 25W : 3250 lm / 30W : 3900 lm / 35W : 4550 lm
UL Certified DLC Listed Premium Dimmable 5 years warranty

Description

• Backlight LED panel luminaire.
• Tunable power and CCT with a switch.
• Installation: suspended / suspended ceiling / surface mount with optional mounting frame.
• 0-10 V variable intensity and compatible with most 0-10 V dimmer models.
• Perfect replacement for the whole set of T8 and T5 fluorescent lighting fixture.
• Uniform brightness, high performance, low energy consumption and low radiant heat.
• ‘’IC’’ type
• Complies with CAN ICES-005(B) / NMB-005(B).
• Warranty: 5 Years.

Applications

Office, business place, clinic, airport, commerce, hotel, basement, etc.

Model

TLPBLUS22W35AD

DLC ID

PLZV2L0TS9LH

Power (W)

20W / 25W / 30W / 35W

Input Voltage (V)

AC100-347V, 50/60Hz

Efficacy

130 lm/W

Power Factor (PF)

0.9
