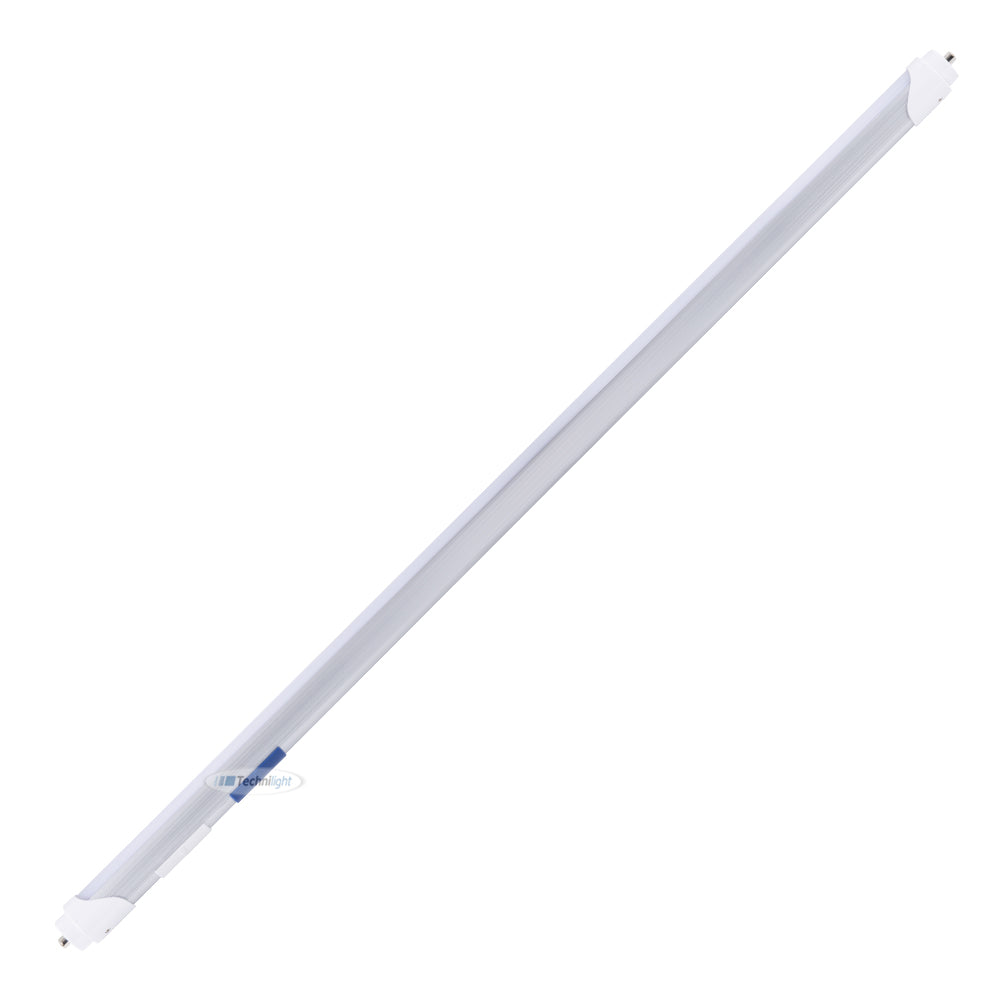

8' LED tube
Selectable power : 20W / 24W / 28W / 32W / 36W / 40W
Selectable CCT : 3000K / 3500K / 4000K / 5000K / 6000K / 6500K
Light output : 20W : 2600 lm / 24W : 3120 lm / 28W : 3640 lm / 32W : 4160 lm / 36W : 4680 lm / 40W : 5200 lm
cETLus 5 years warranty

Product information

Technical sheet Installation guide

Description

• Selectable CCT: 3 000 K / 3 500 K / 4 000 K / 5 000 K / 6 000 K / 6 500 K.
• Aluminum and polycarbonate construction.
• Perfect replacement for the whole set of T8 and T12 fluorescent lighting fixture.
• Soft and uniform light. No glare and no flickering.
• Economy on electricity consumption compared to fluorescent lighting fixture.
• "UL Type A and B". With ballast and direct supply from 100 to 347 VAC.
• Warranty: 5 Years.

Applications

Fluorescent T8 and T12 tubes replacement.
Compatible with TLYH8G luminaire.

Model

TLT8US8FT40A

DLC ID

N/A

Power (W)

20W / 24W / 28W / 32W / 36W / 40W

Input Voltage (V)

AC100-347V, 50/60Hz

Efficacy

130 lm/W

Power Factor (PF)

≥0.95

Accessories (not included)

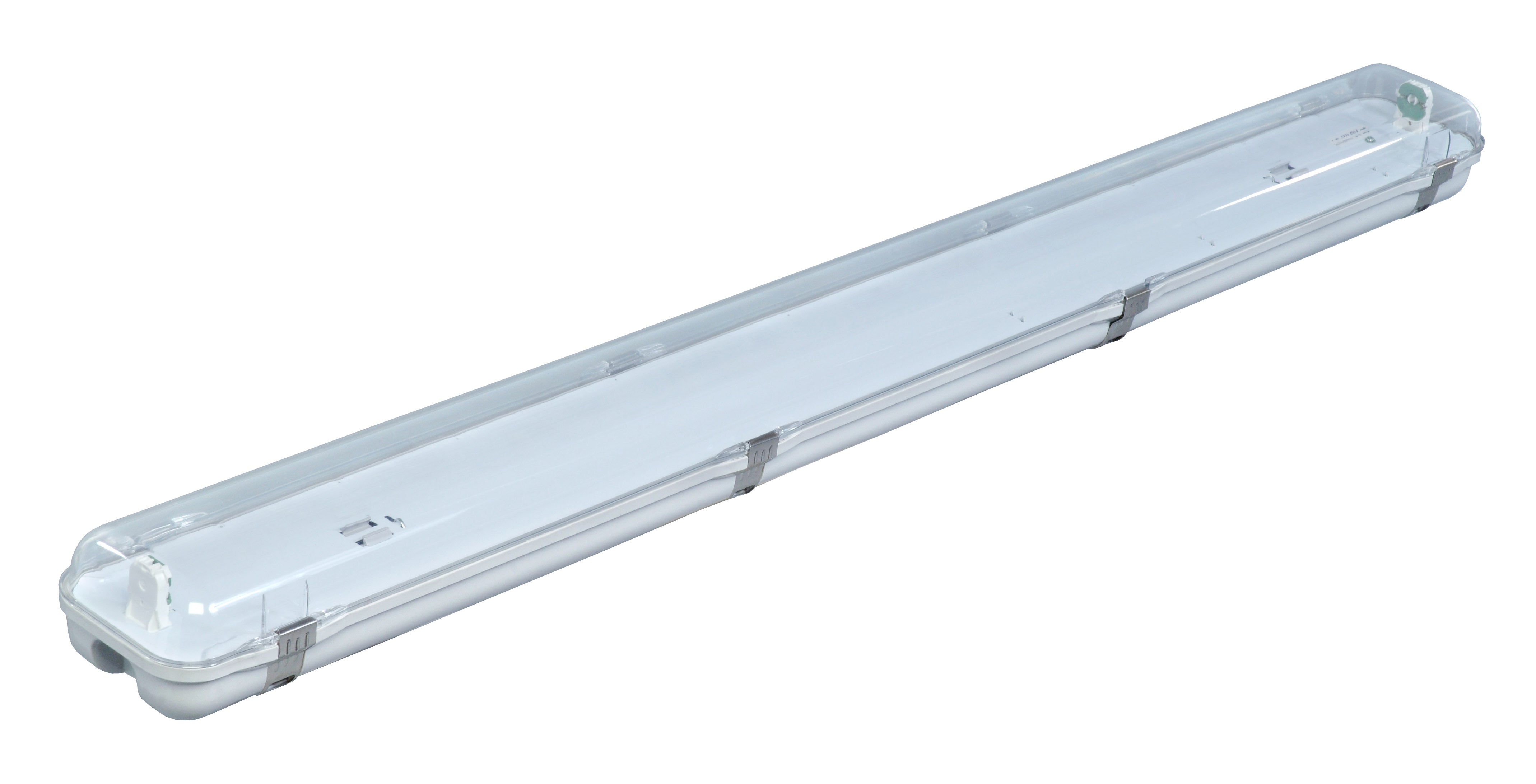

TLYH8G141
TLYH8G141Max 20W
Non

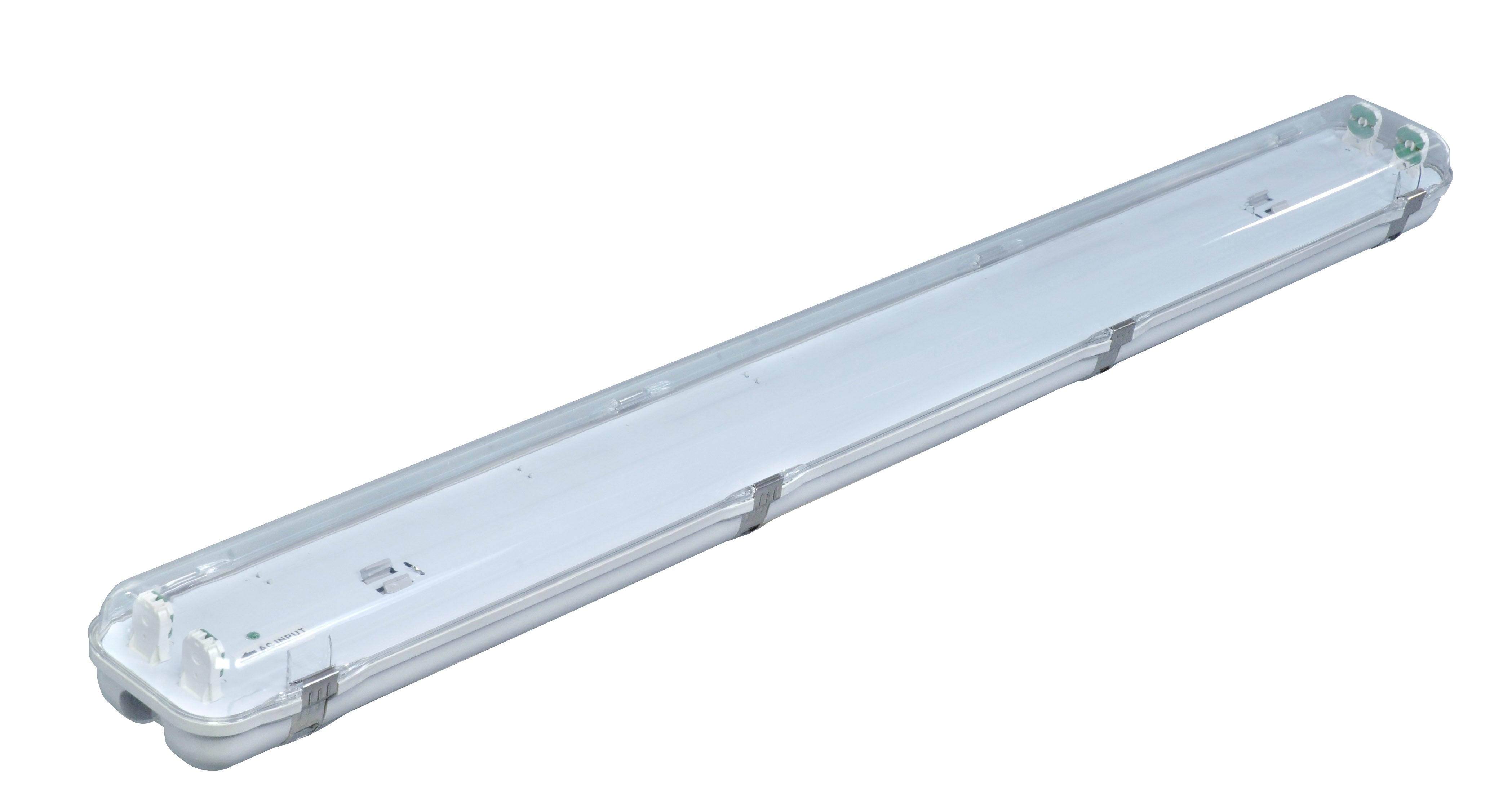

TLYH8G142
TLYH8G142Max 40W
Non
