TLT8US4F22A
TLT8US4F22A

TLT8US4F22A

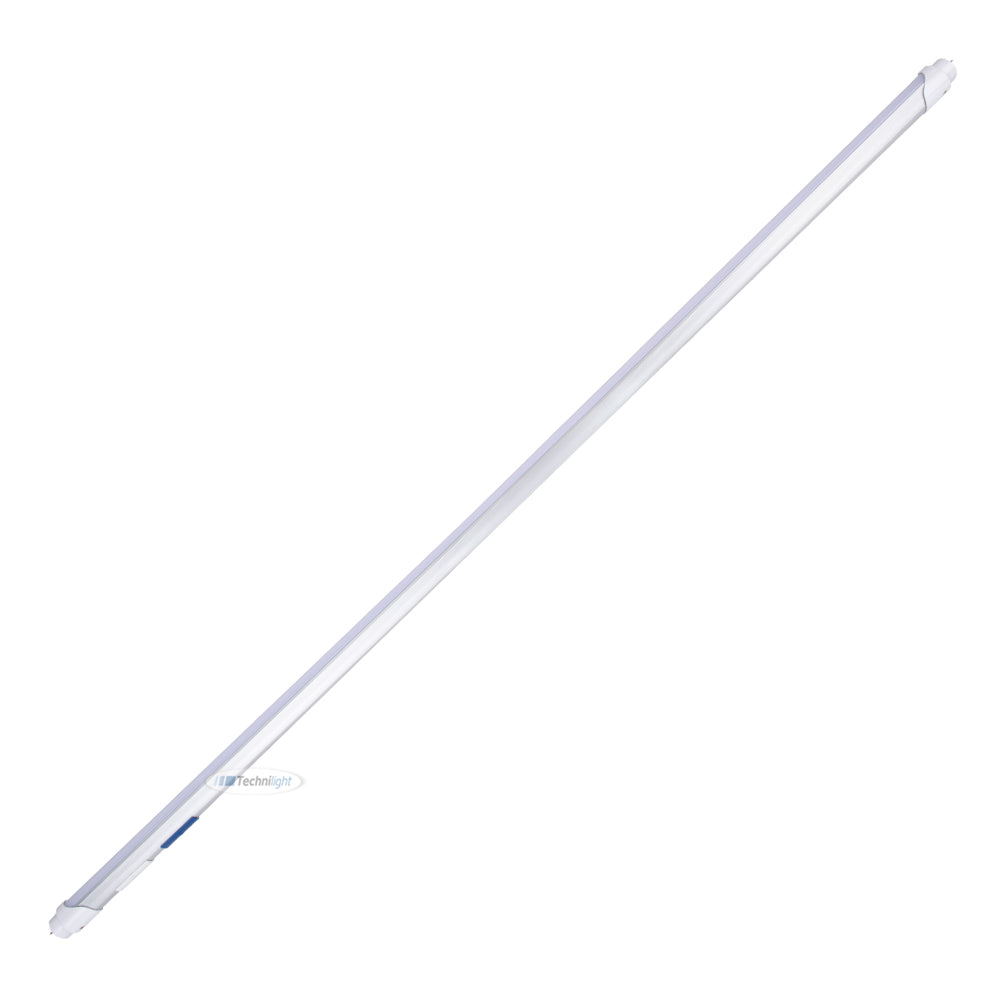

Tube T8 4'
Selectable power : 10W / 12W / 15W / 18W / 20W / 22W
Selectable CCT : 3000K / 3500K / 4000K / 5000K / 6000K / 6500K
Light output : 10W : 1300 lm / 12W : 1560 lm / 15W : 1950 lm / 18W : 2340 lm / 20W : 2600 lm / 22W : 2860 lm
cETLus 5 years warranty

Product information

Technical sheet Installation guide

Description

• Selectable CCT: 3000K / 3500K / 4000K / 5000K / 6000K / 6500K.
• Aluminum and polycarbonate construction.
• Perfect replacement for the whole set of T8 and T12 fluorescent lighting fixture.
• Soft and uniform light. No glare and no flickering.
• Saves on electricity consumption compared to fluorescent lighting fixture.
• "UL Type A and B". With ballast and direct supply from 100 to 347 VAC.
• Warranty: 5 Years.

Applications

Fluorescent T8 and T12 tubes replacement.
Compatible with TLYH8G luminaire.

Model

TLT8US4F22A

DLC ID

N/A

Power (W)

10W / 12W / 15W / 18W / 20W / 22W

Input Voltage (V)

AC100-347V, 50/60Hz

Efficacy

130 lm/W

Power Factor (PF)

≥0.95

Accessories (not included)

TLYH8G141
TLYH8G141Max 20W
Non
TLYH8G142
TLYH8G142Max 40W
Non
