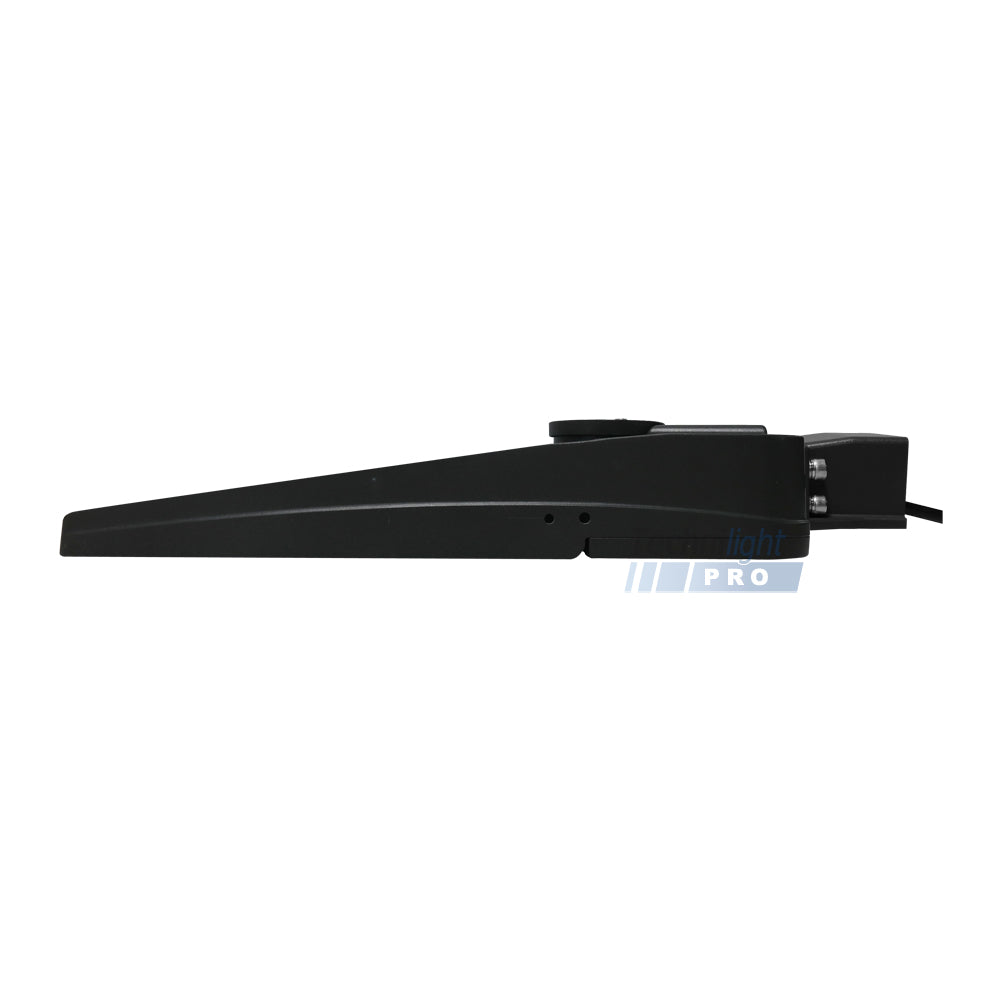

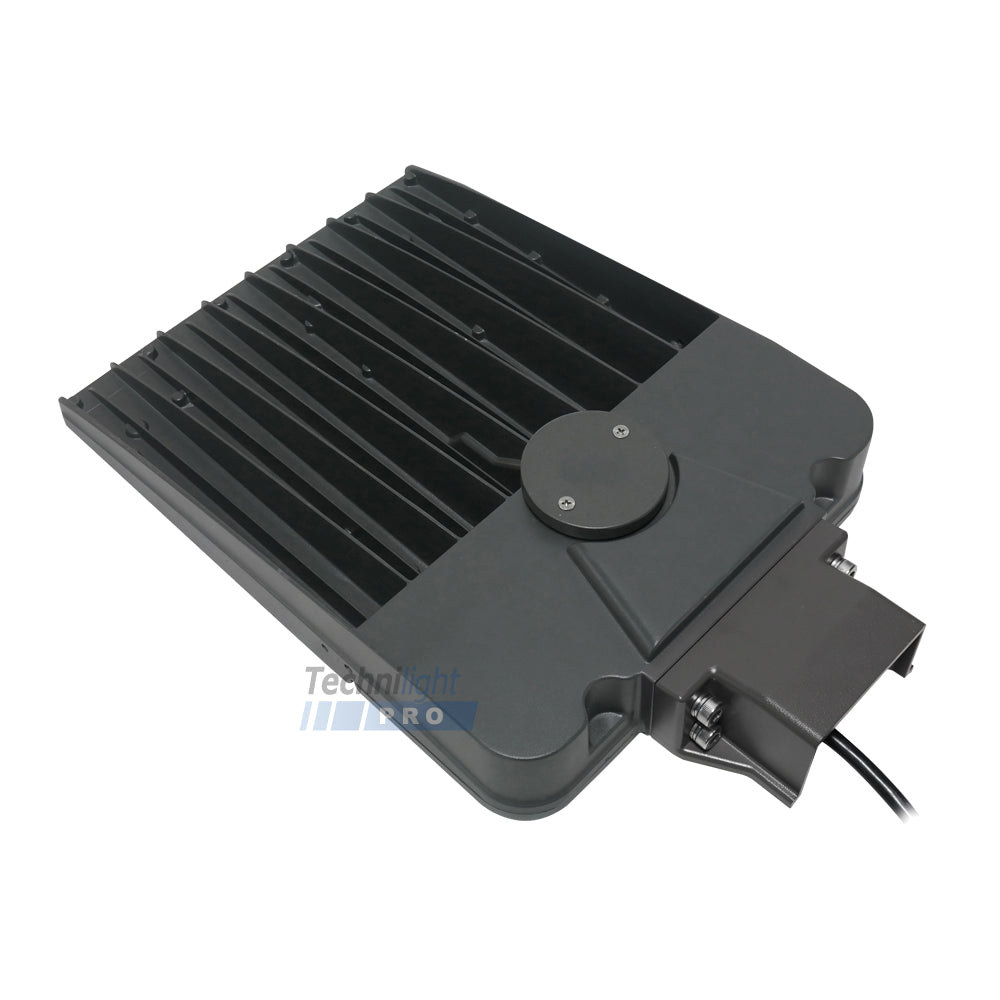

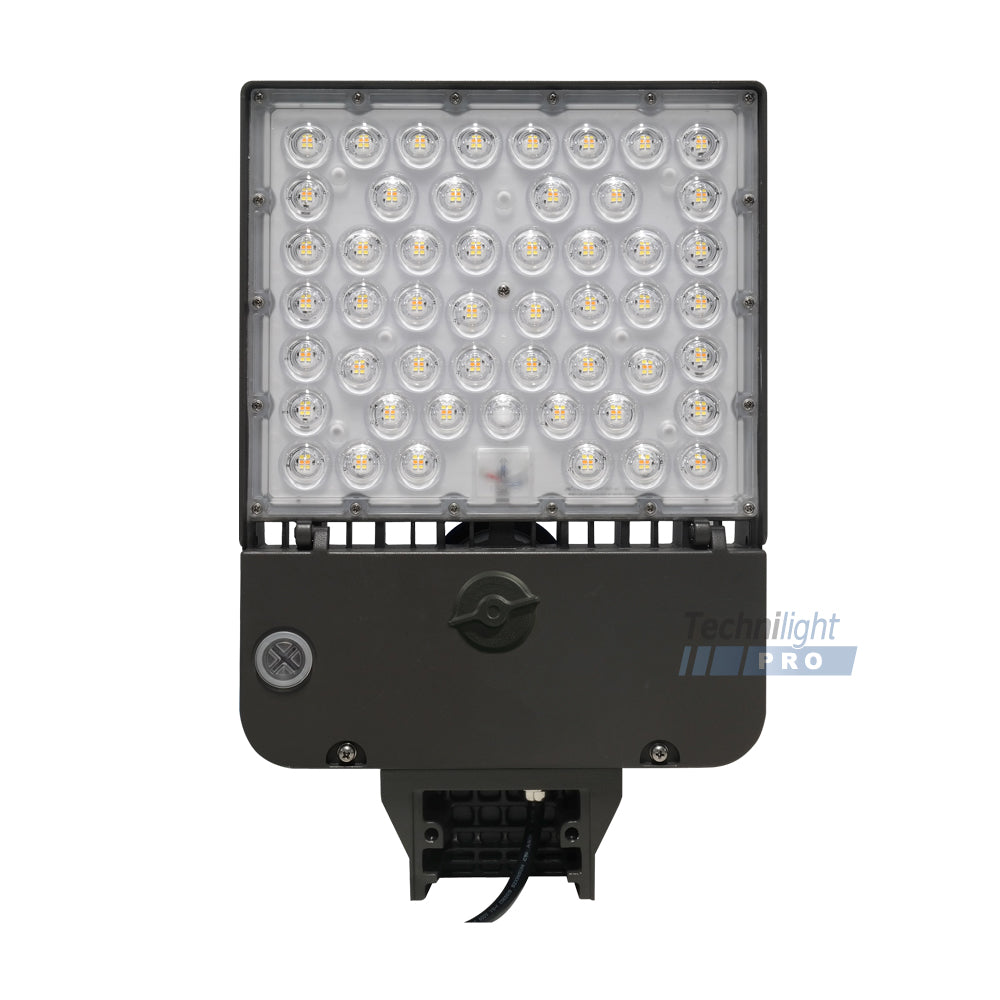

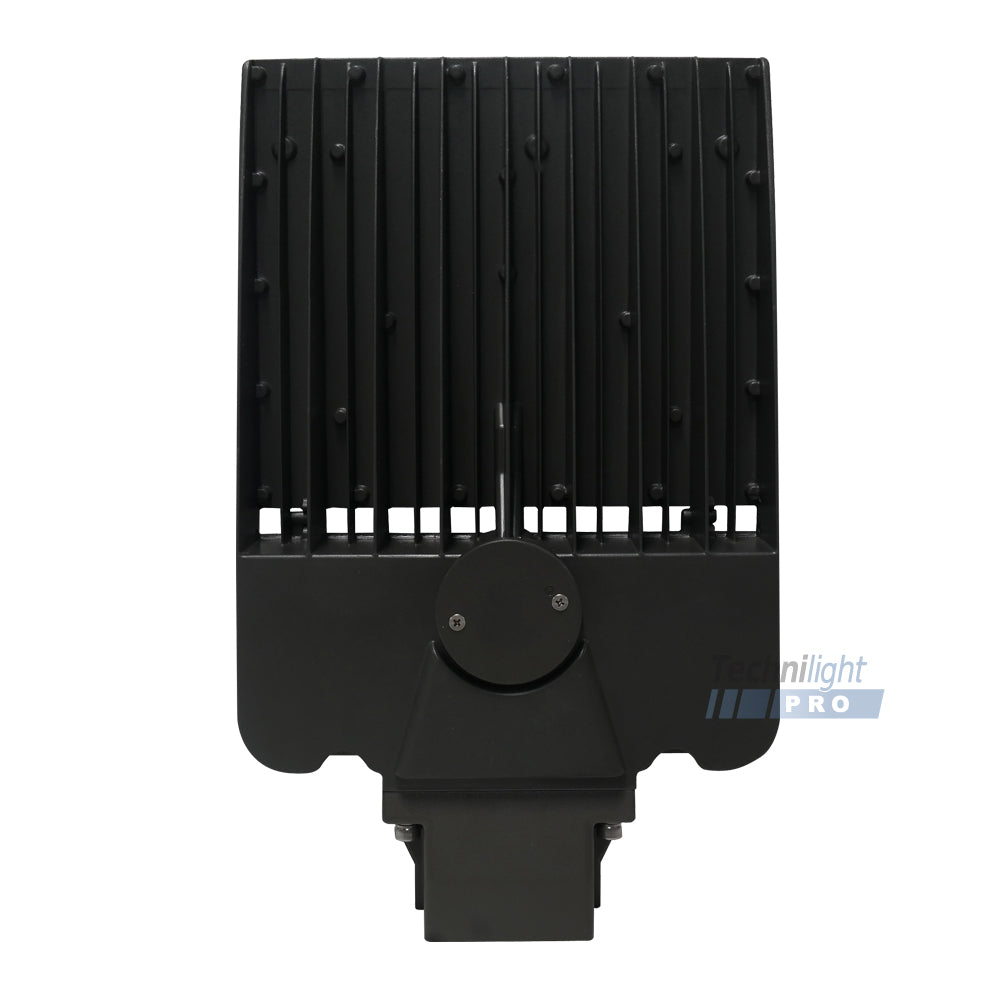

TPALUS60TXABK
Area light
Availability: Regular stock
Selectable power :
30W / 45W / 60W
Selectable CCT :
3000K / 4000K / 5000K
Light output :
30W: 4 350 lm / 45W: 6 525 lm / 60W: 8 700 lm
Product information
Description
Model
TPALUS60TXABK
Power (W)
30W / 45W / 60W
Input Voltage (V)
AC120-347V, 50/60Hz
Efficacy
145 lm/W
Power Factor (PF)
≥0.9
Surge protection
L-N:6KV, L/N-PE:6KV
Total harmonic distortion
≤20% Full load
Dimmable
0-10 V
CRI
>80
CCT
3000K / 4000K / 5000K
Beam angle
Type III / Type IV / Type V
Light Output
IP Rating
IP66
Material
Aluminum
Lens
Polycarbonate
Net weight
3.5 kg
Dimensions
Operating Humidity
10% ~ 95%
Operating Temperature
-40°C ~ 50°C
