TPHBUS240AD

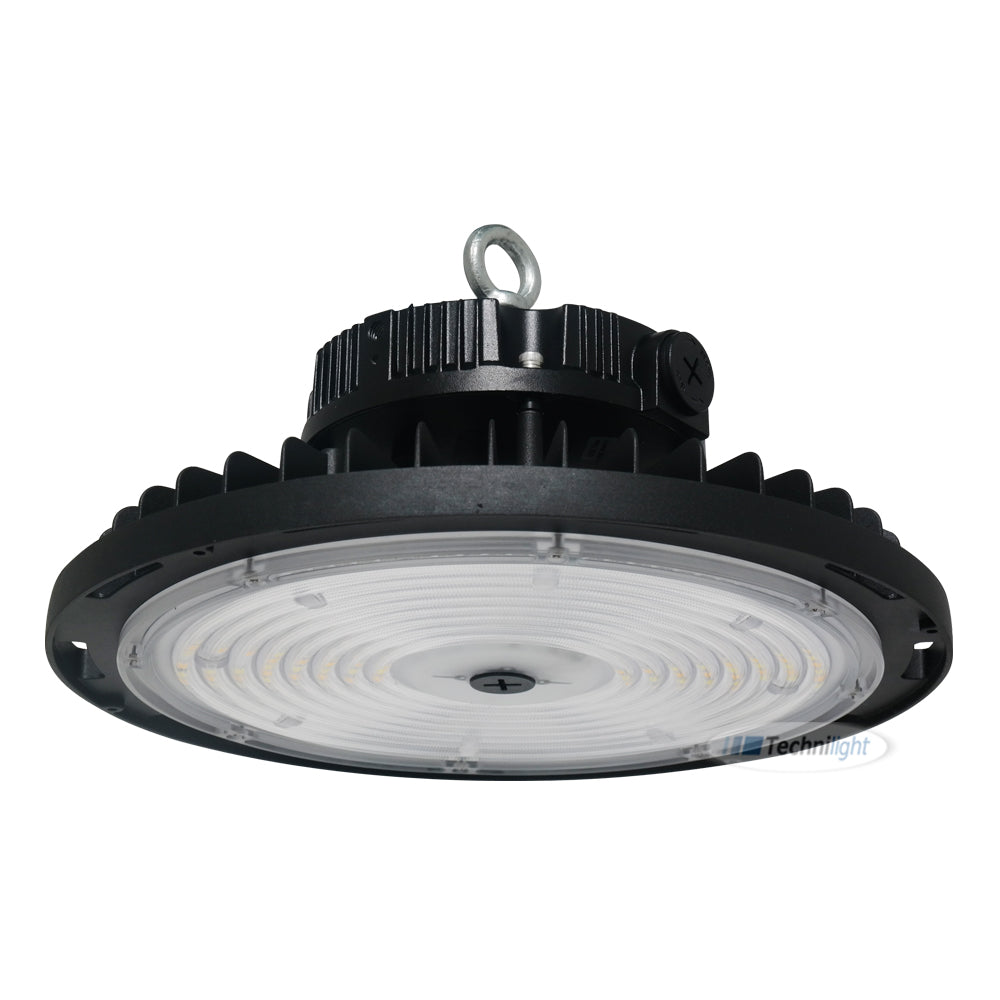

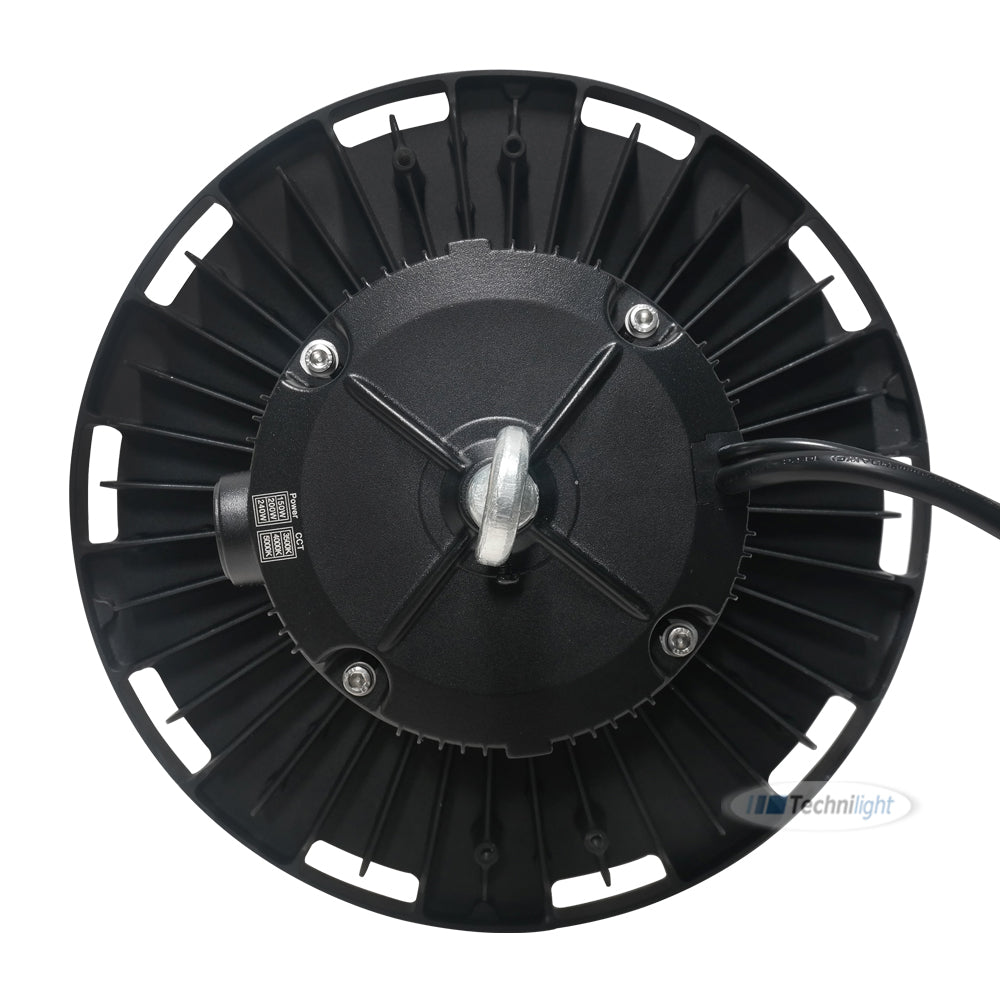

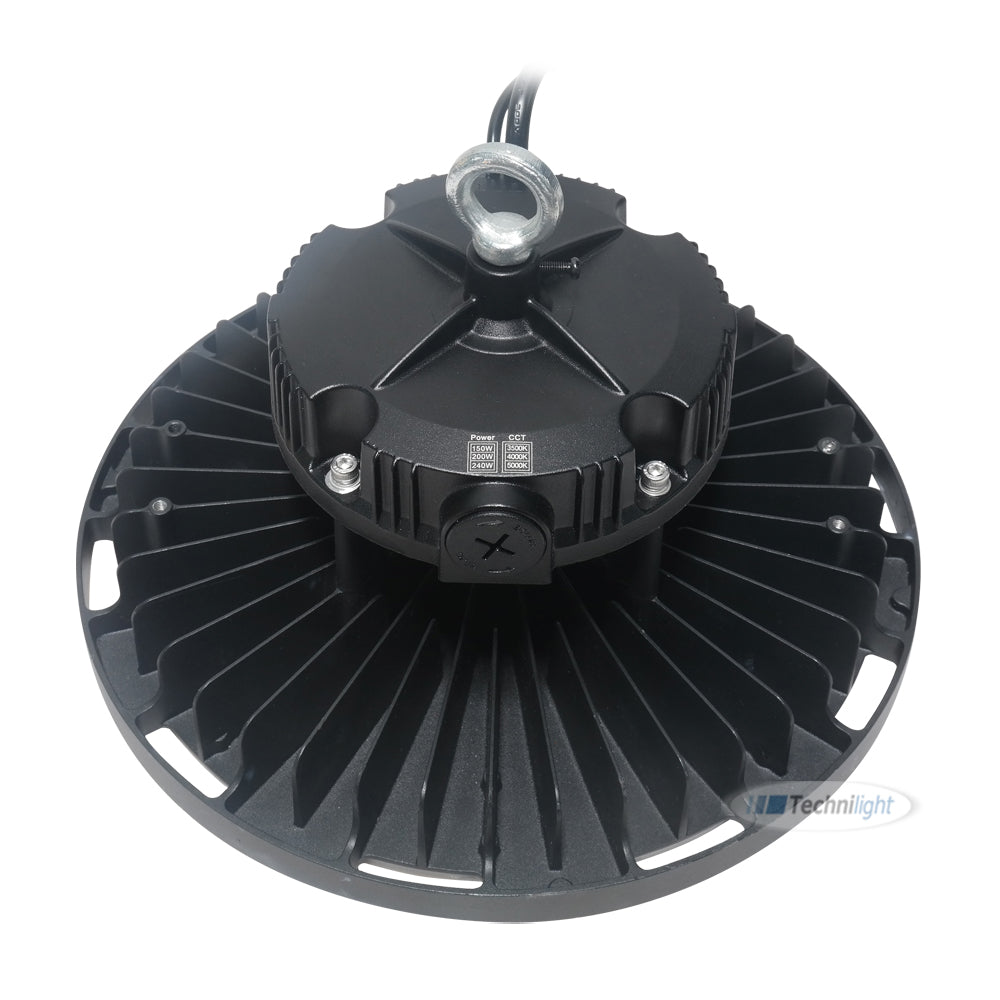

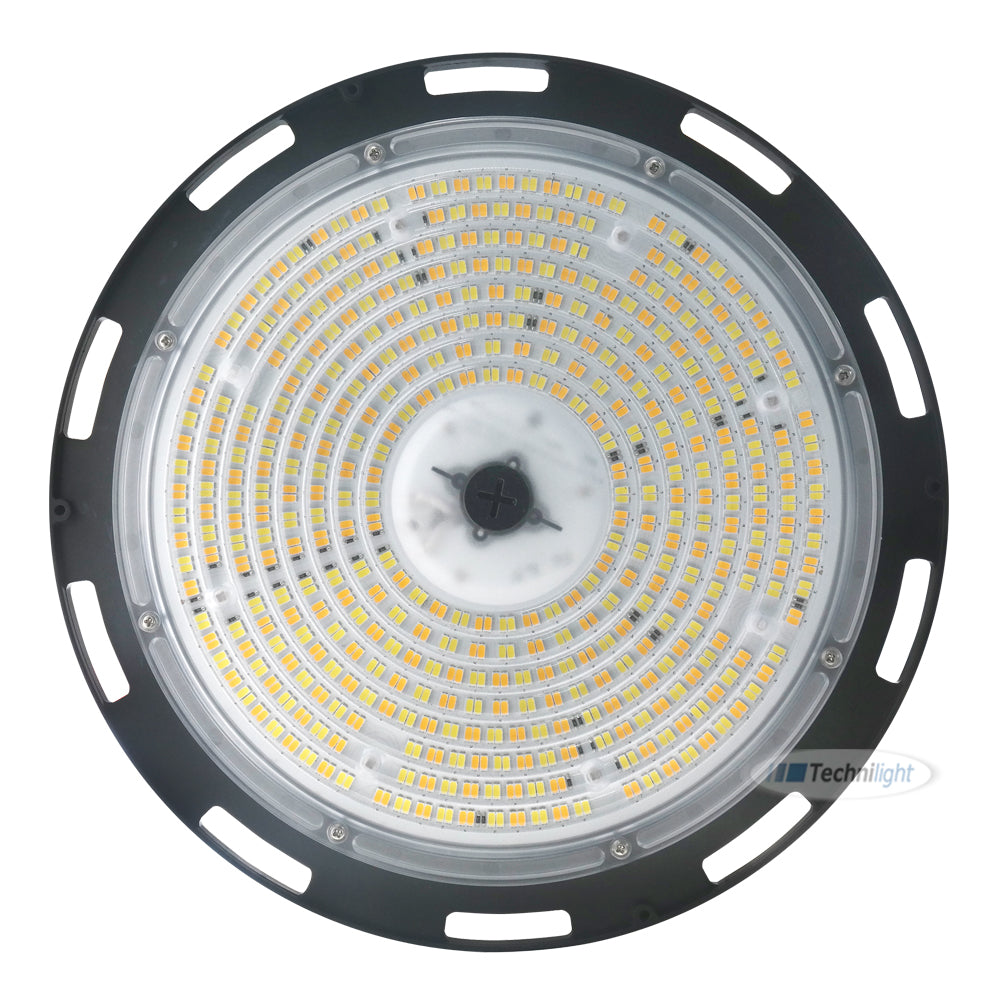

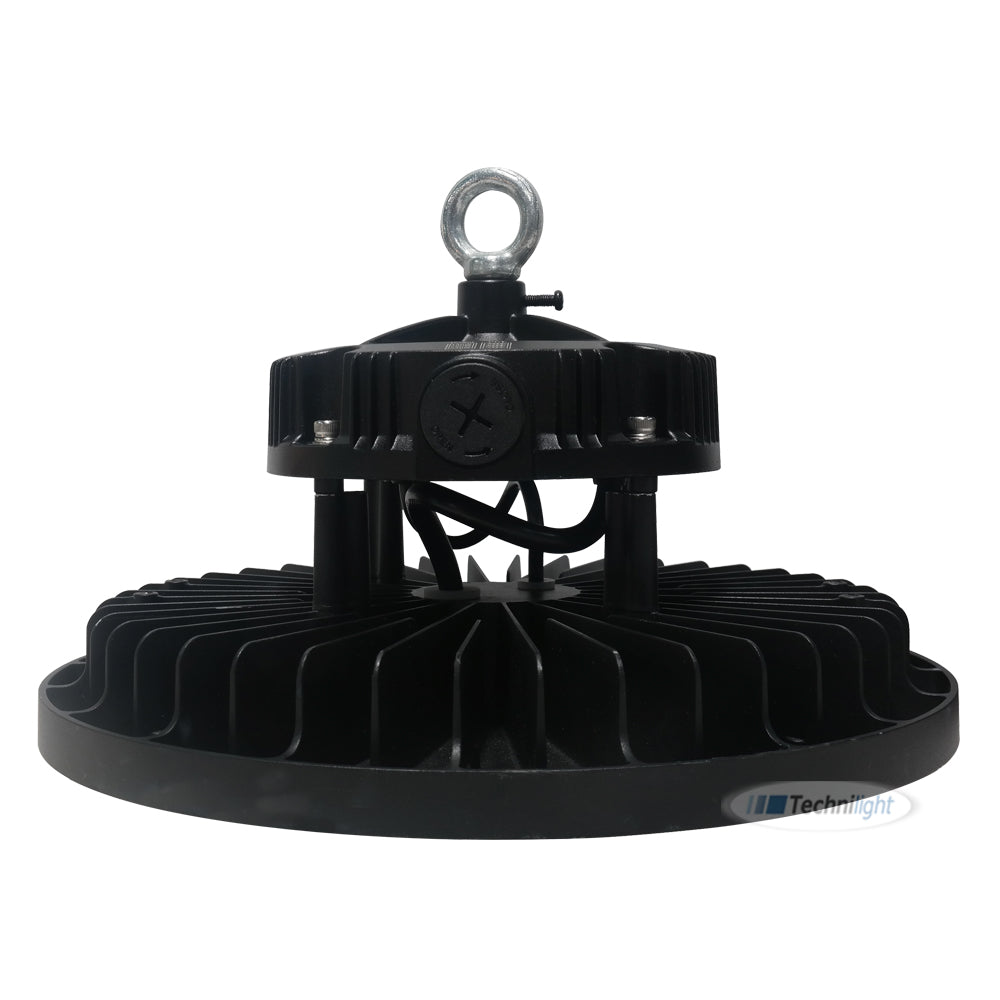

High bay LED luminaire
Selectable power : 150 W / 200 W / 240 W
Selectable CCT : 3 500 K / 4 000 K / 5 000 K
Light output : 150W: 22 500 lm / 200W: 30 000 lm / 240W: 36 000 lm
Selectable CCT : 3 500 K / 4 000 K / 5 000 K
Light output : 150W: 22 500 lm / 200W: 30 000 lm / 240W: 36 000 lm
Product information
TPHBUS240AD
Sale price$236.00
Regular price (/)
Description
Model
TPHBUS240AD
DLC ID
S-3FZG9B
Power (W)
150 W / 200 W / 240 W
Input Voltage (V)
120-347 V, 50/60 Hz
Efficacy
150 lm/W
Power Factor (PF)
>0.9
Surge protection
6 kv
Total harmonic distortion
≤15%
Dimmable
0-10 V
CRI
81
CCT
3 500 K / 4 000 K / 5 000 K
Beam angle
90°
Light Output
IP Rating
IP65 / IK08
Material
Aluminum
Lens
Polycarbonate
Net weight
3 kg
Dimensions
Operating Humidity
10% - 90%
Operating Temperature
-40°C ~ 50°C
