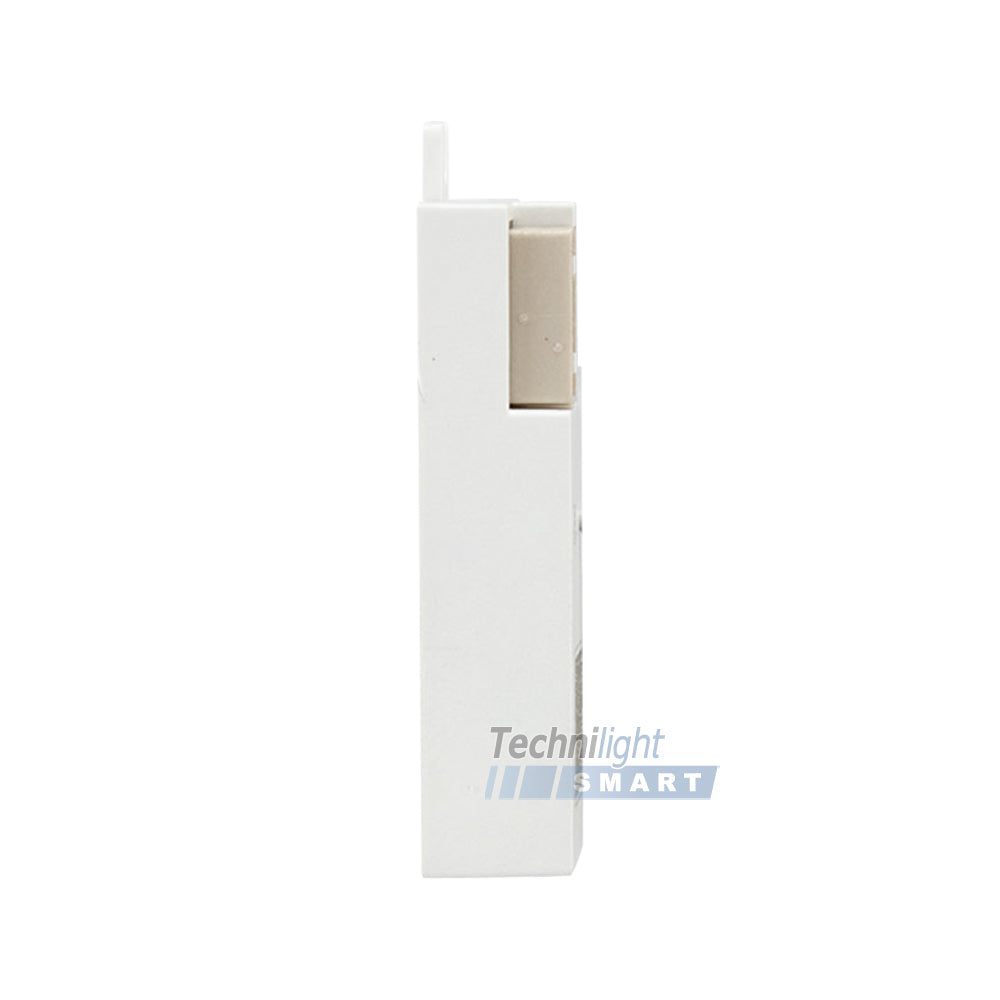

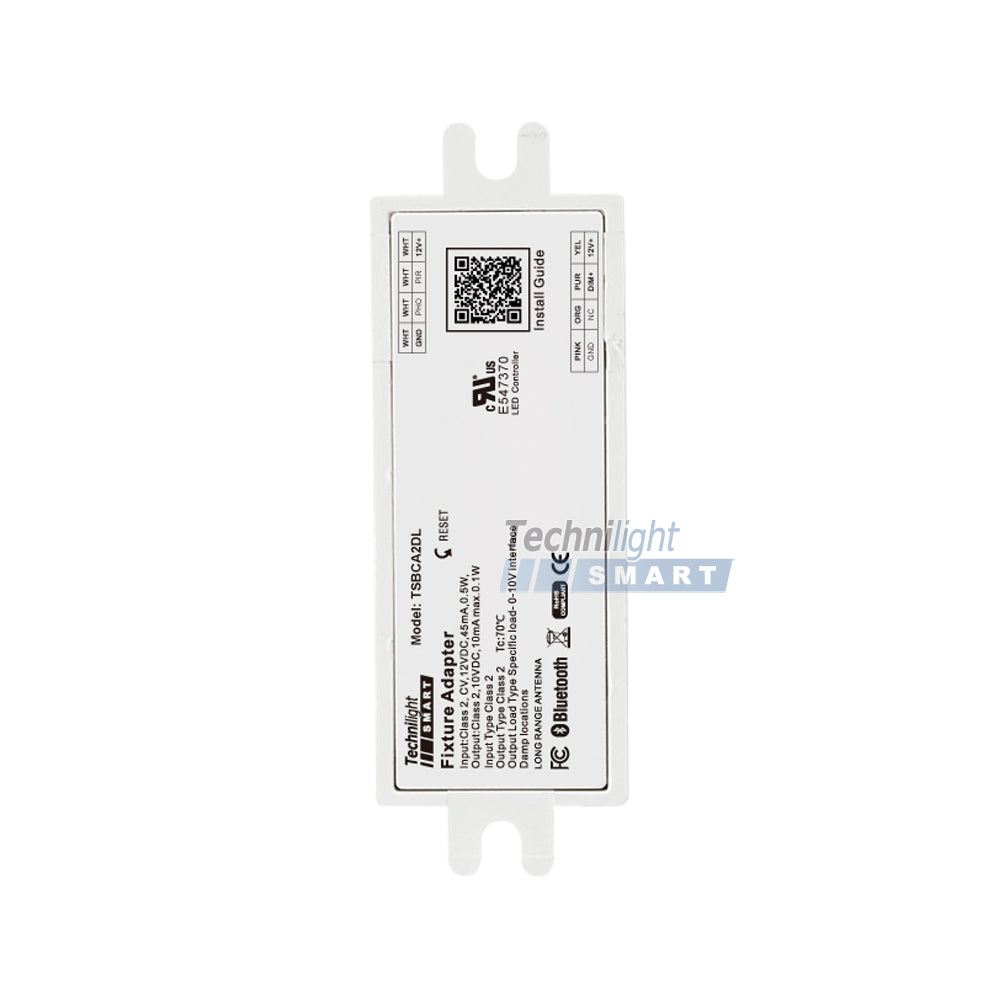

TSBCA2DL

TSBCA2DL fixture controllers are designed to increase the
Bluetooth signal in a networked lighting control system,
especially for outdoor applications. They feature an external
long-range antenna that extends wireless coverage for outdoor
motion detection linkage. Sensors are not needed if it is used as
a Bluetooth node.

Features
• 12VDC input.
• Integrated Bluetooth module.
• Includes connection port for long-range antenna with up to
1640ft range.
• Bluetooth long-range transmission range (TSTX1 antenna
included).
• Designed to integrate into luminaires for Luminaire Level
Lighting Control (LLLC).
• Sensor-ready attachment port for Technilight Smart Eco
Sensors (CC cable required).
• 0-10V output.
• TSCD30 cable included.

Requirements
• Dim to OFF driver with 12VDC output.

Notes
All application environments will not necessarily be able
achieve max signal range due to factors such as signal
obstructions, interference, and luminaire/housing design.
Testing is recommended to ensure performance for the
applications.
