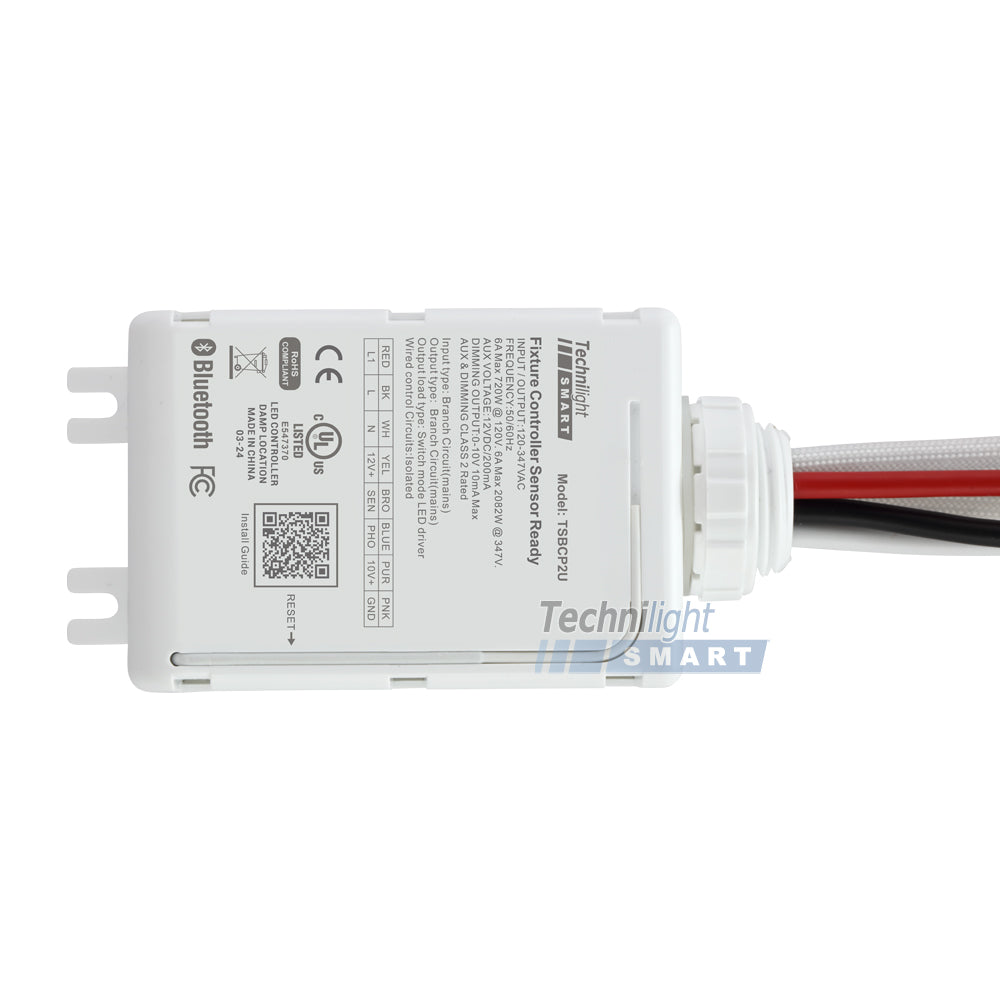

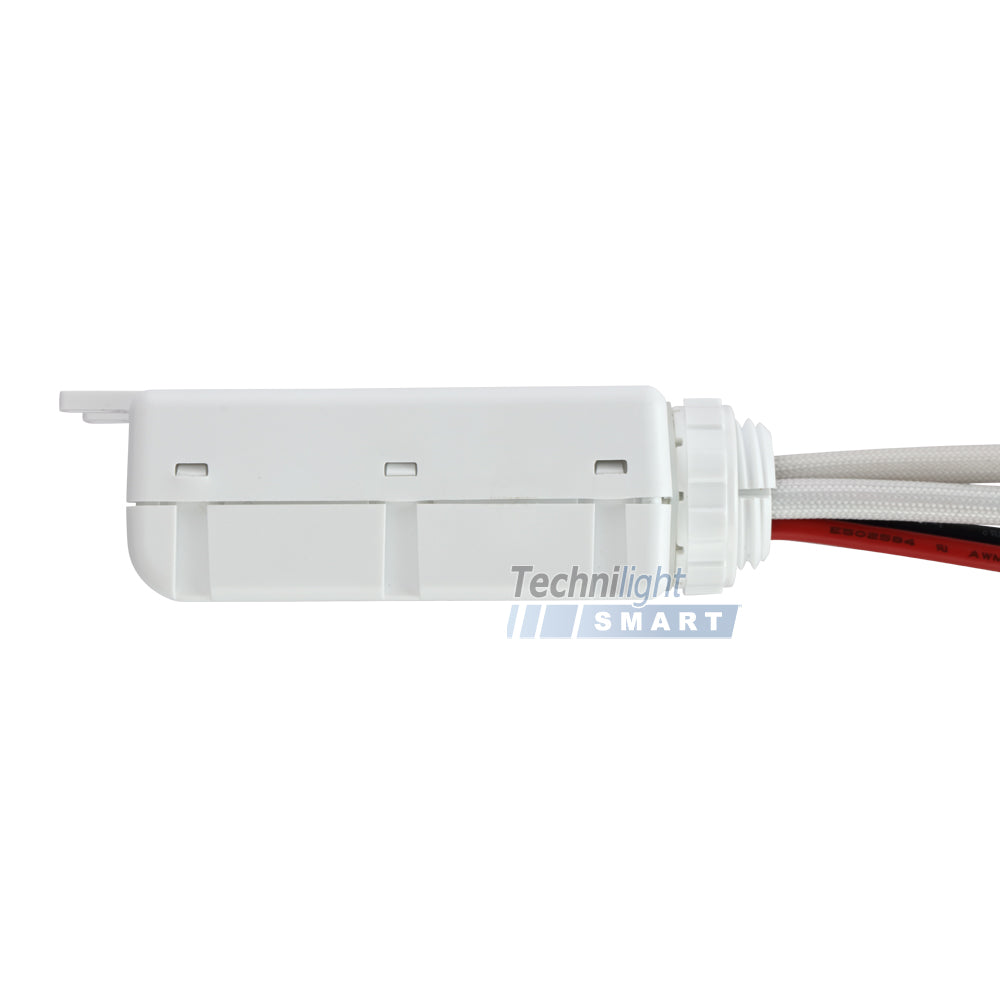

TSBCP2U

The TSBCP2U Bluetooth luminaire controller allows seamless
conversion of luminaires to wireless control for integration
into the Technilight Smart system. Device settings and
commissioning are done via the Technilight Smart mobile
app. The TSBCP2U can be connected to Technilight Smart eco
sensors via a PH2.0 port for plug-and-play connection or a
direct cable connection.

Features
• 120-347 VAC input.
• Built-in 6 A relay.
• Provides a 12 V, 200 mA output to the sensors.
• Mounts to a standard 1/2» NPT hole.
• Provides a dimmable 0-10 VDC output, single or dual channel.
