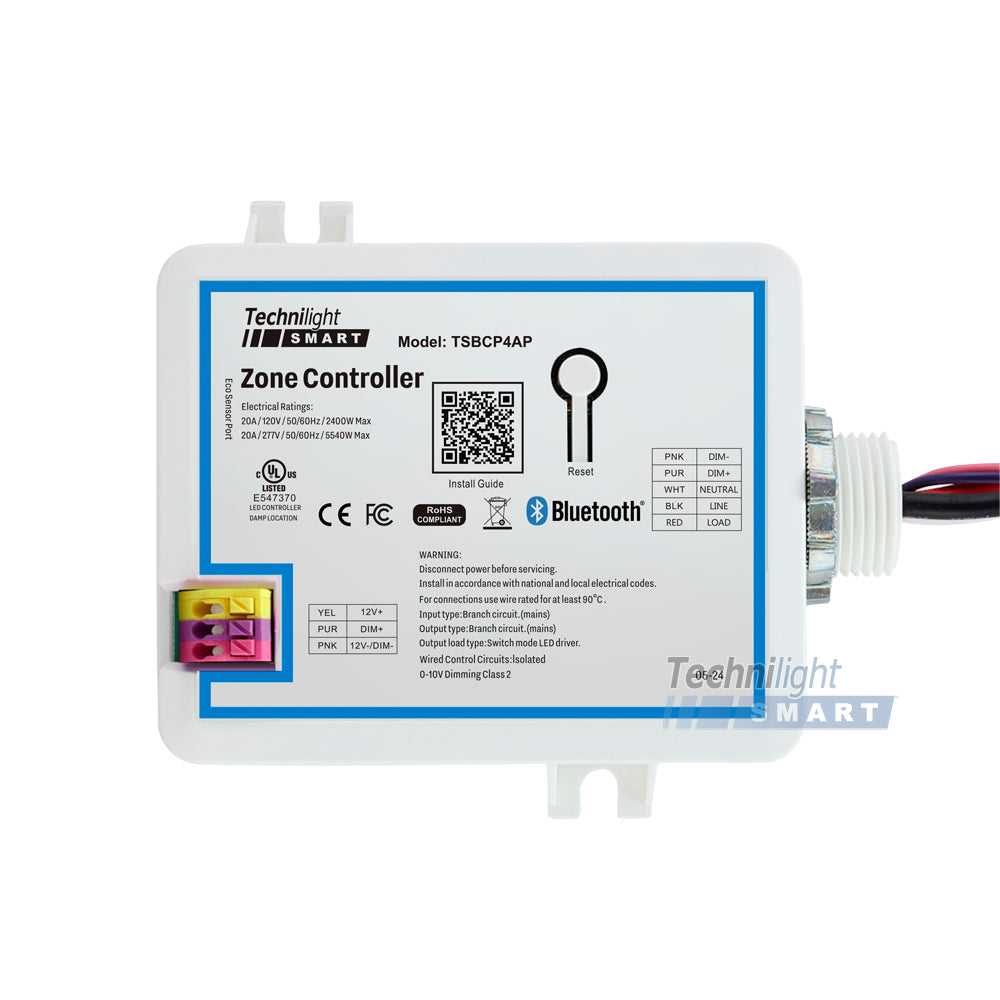

TSBCP4AP

Name: TSBCP4AP
Brand: Technilight

BT zone controller AC 120-277V 20 A

Product information

Technical sheet

Description

The TSBCP4AP Bluetooth zone controllers feature a 20A relay
to control larger loads than standard fixture controllers. Use
an RJ45 port for integration with ECO-Sensor products. The
TSBCP4AP supports switching of outlet loads up to 20A and
motor loads up to 1HP.

Features
• 120-277VAC Input.
• Integrated 20A relay.
• Output power up to 2,400W (120VAC), 5,540W (277VAC).
• UL Plenum Rated.

Model

TSBCP4AP

Input voltage

AC120-277V

Output voltage

AC120-277V

Input power

2400W Max @ 120V, 5540W Max @ 277V

Output power

2400W Max @ 120V,5540W Max @ 277V

Input current

20A Max
