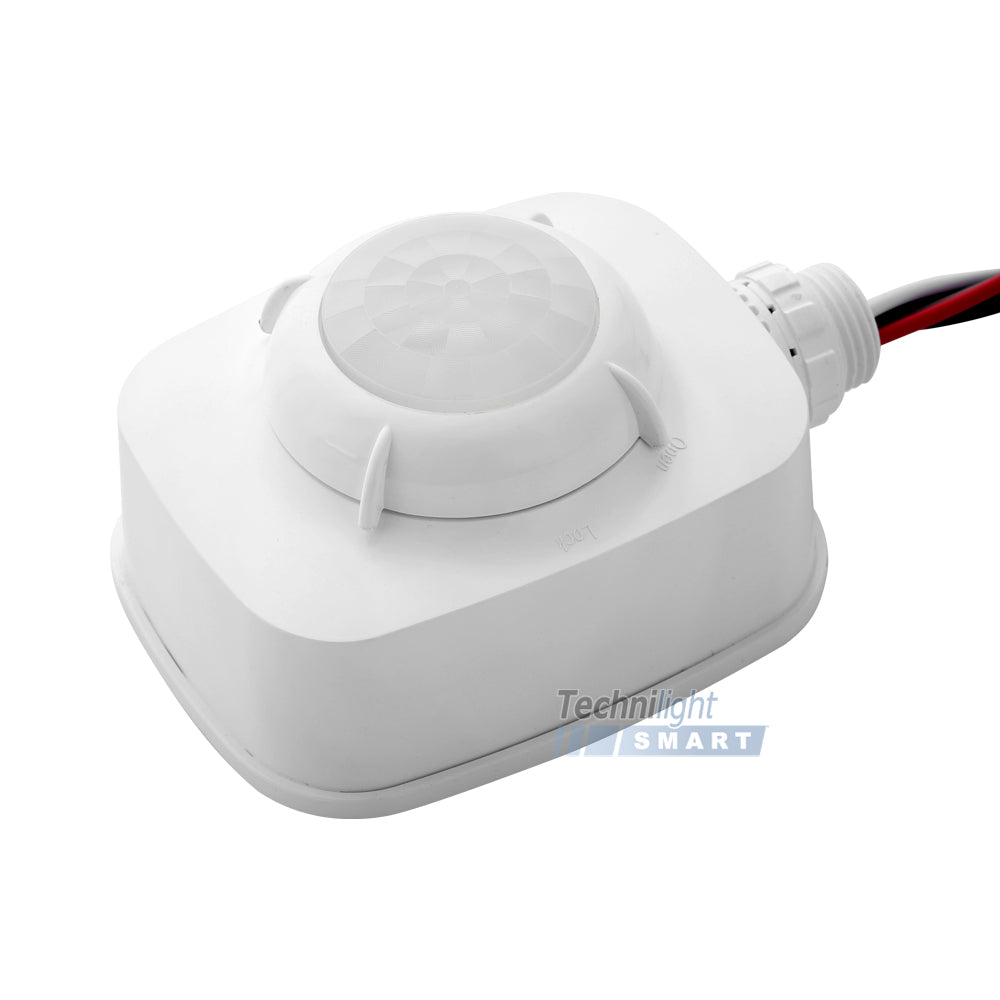

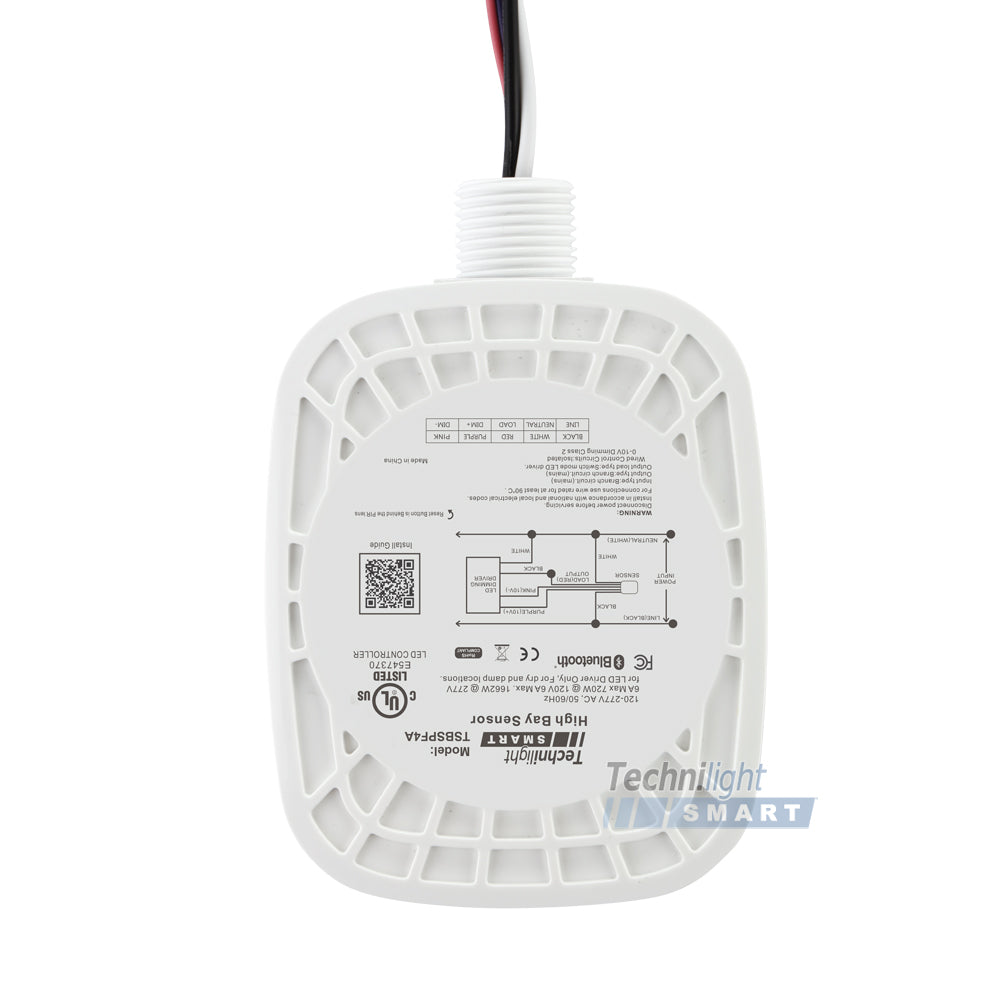

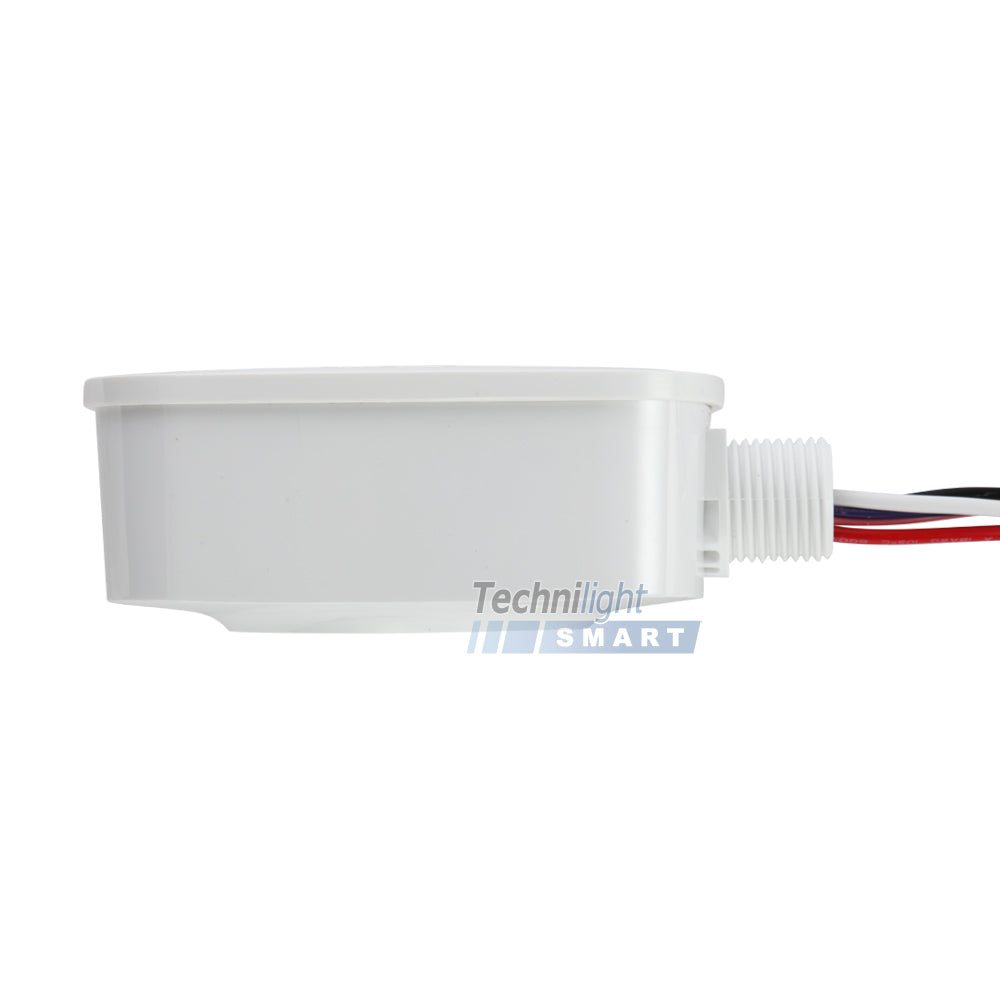

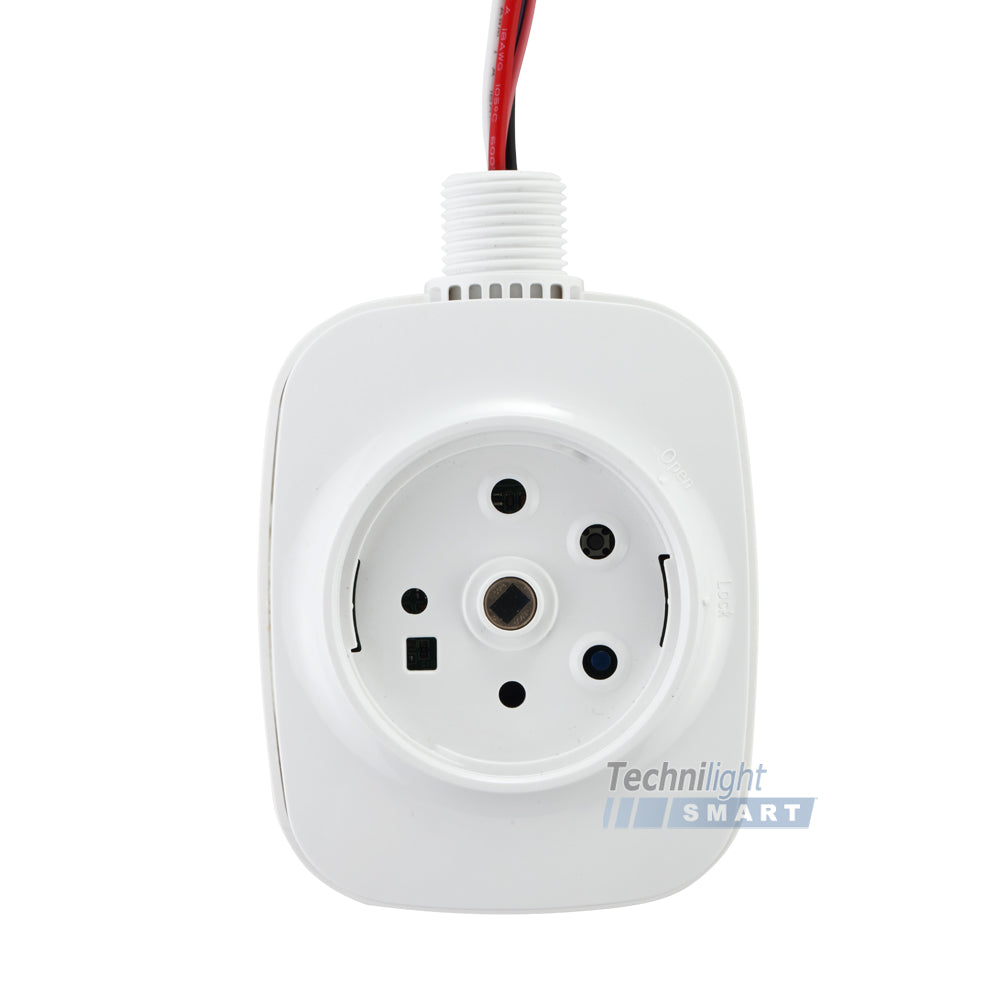

TSBSPF4A
External 120-277V AC sensor for medium-height ceilings







Product information
Description
Model
TSBSPF4A
Input voltage
AC120-277V
Output voltage
-
Input power
-
Output power
EFS104.A0:1200W Max EFS104.B1:720-1662W Max
Input current
-
Output current
EFS104.A0: 10A Max @ 120V, 10A Max @ 277V EFS104.B1: 6A Max @ 120V,6A Max @ 277V
Sinking current
10mA Max
Frequency
Radio frequency: 2.4GHz ± 75MHz
Dimming
Class 2, 0-10V DC 10mA Max
Bluetooth transmit
200’ Max
Bluetooth version
4.2 (EFS104.A0), 5.0 (EFS104. B1)
Mounting height
10’ to 20’
Detection range
25’ to 50’
Operating temperature
-30°C ~ 55°C, -22°F ~ 131°F
Material
UL 94-5VA
IP rating
IP40
Safety
DLC: coming soon
